Seen in the field

Wall of Shame

Since the advent of supercomputer cameras in our pockets, I’ve collected a bunch of real winners. Fortunately, most of the pictures’ culprits are out of business.

Let’s start with: “Are you really going to mount those black phone boxes on either side of my fire alarm maintenance keypad, leaving a wire across its face?”

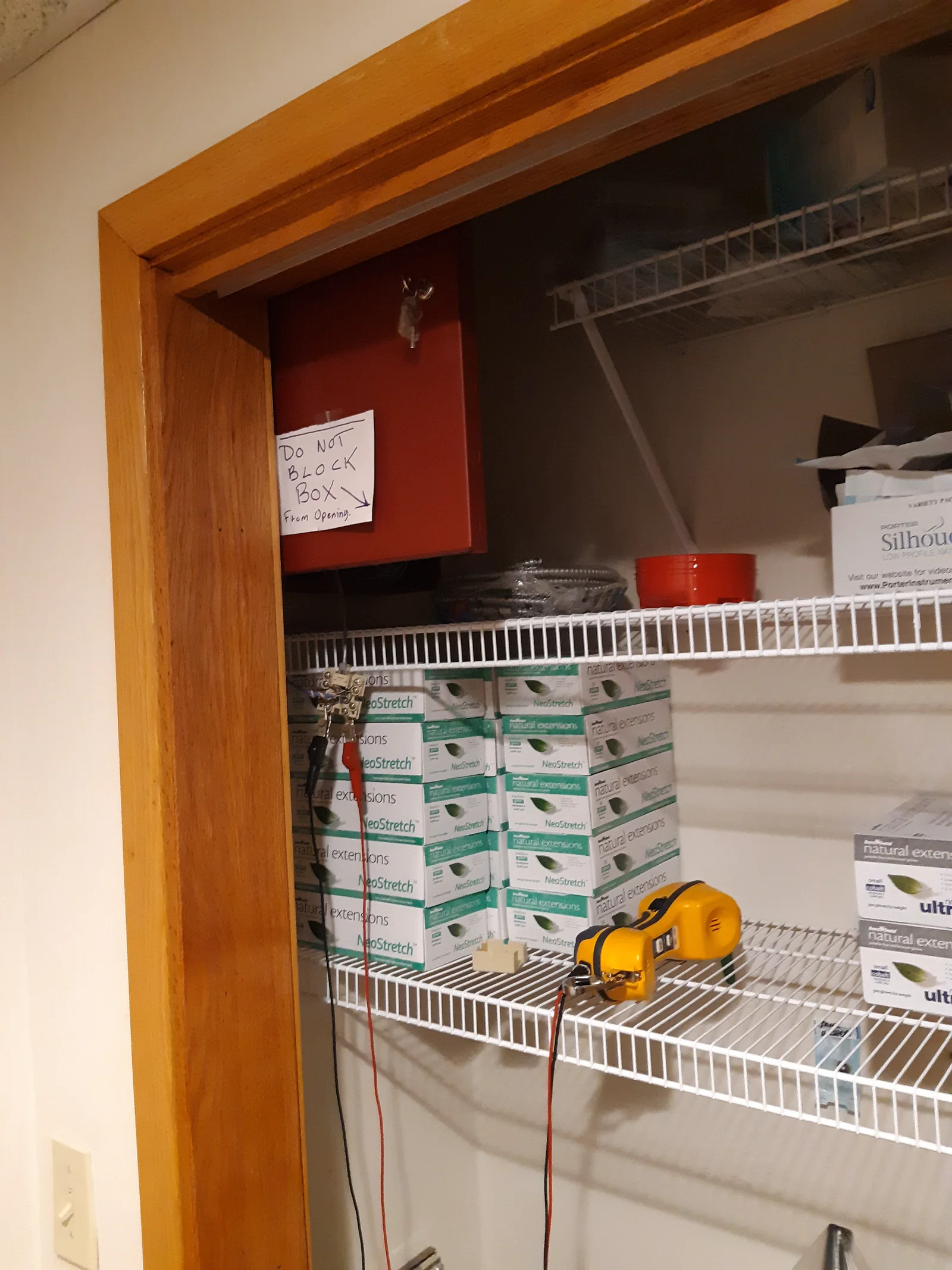

Bad panel / impossible closet: The shelves were added later, but this installer still had no excuse. There’s a fully protected basement with a nearly empty eight-foot-wide equipment board 12 feet below this cramped closet.

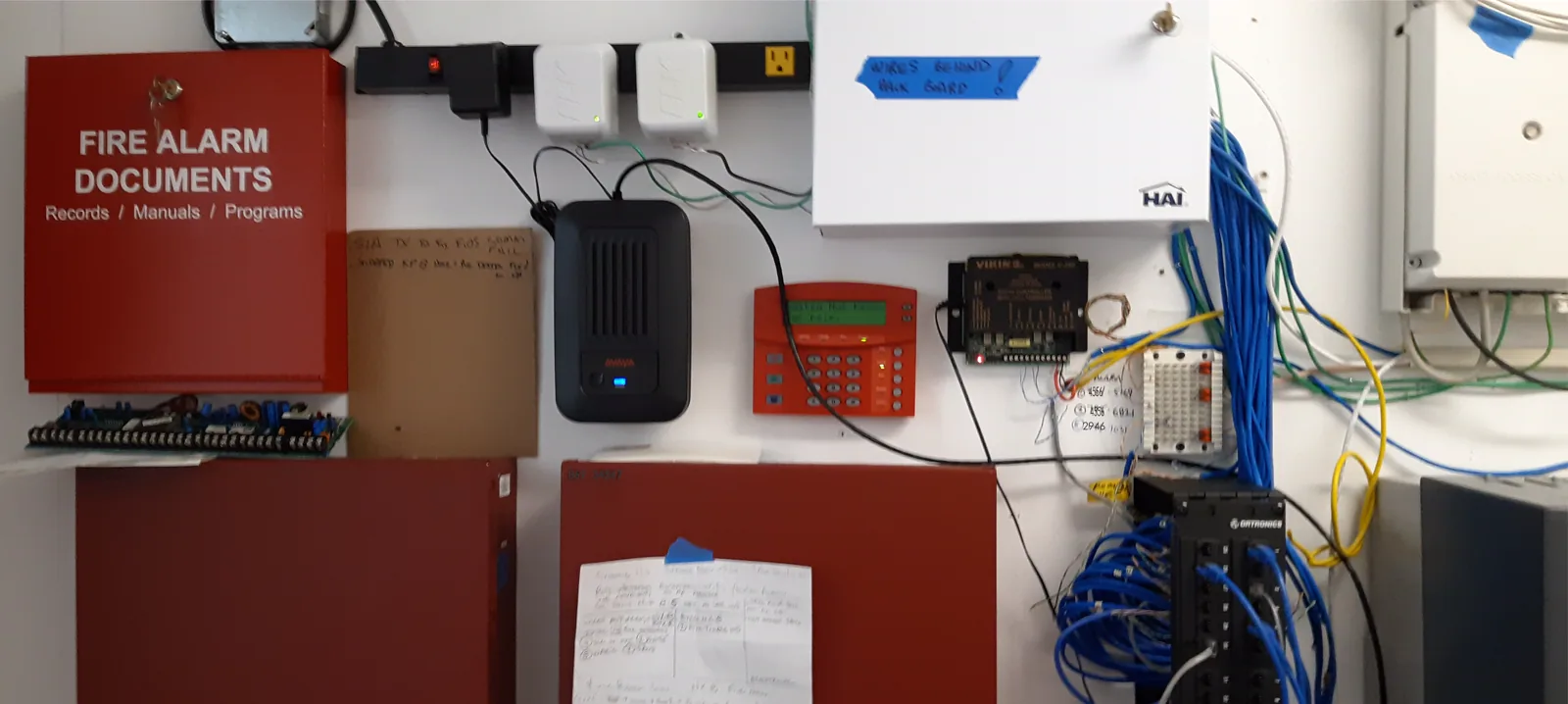

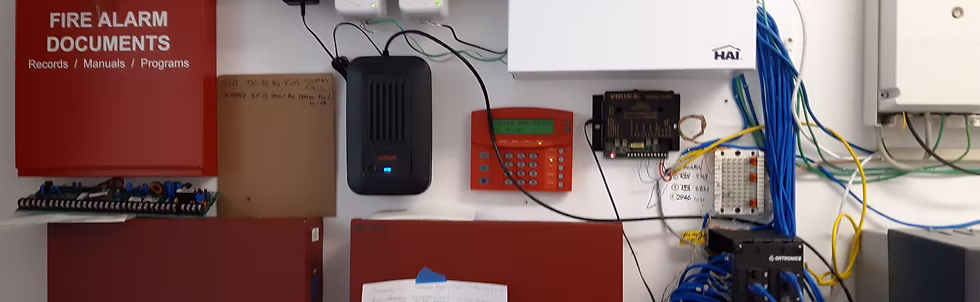

Phone boxes mounted beside a fire alarm maintenance keypad — Phone boxes mounted beside the fire alarm keypad—with a wire across its face.

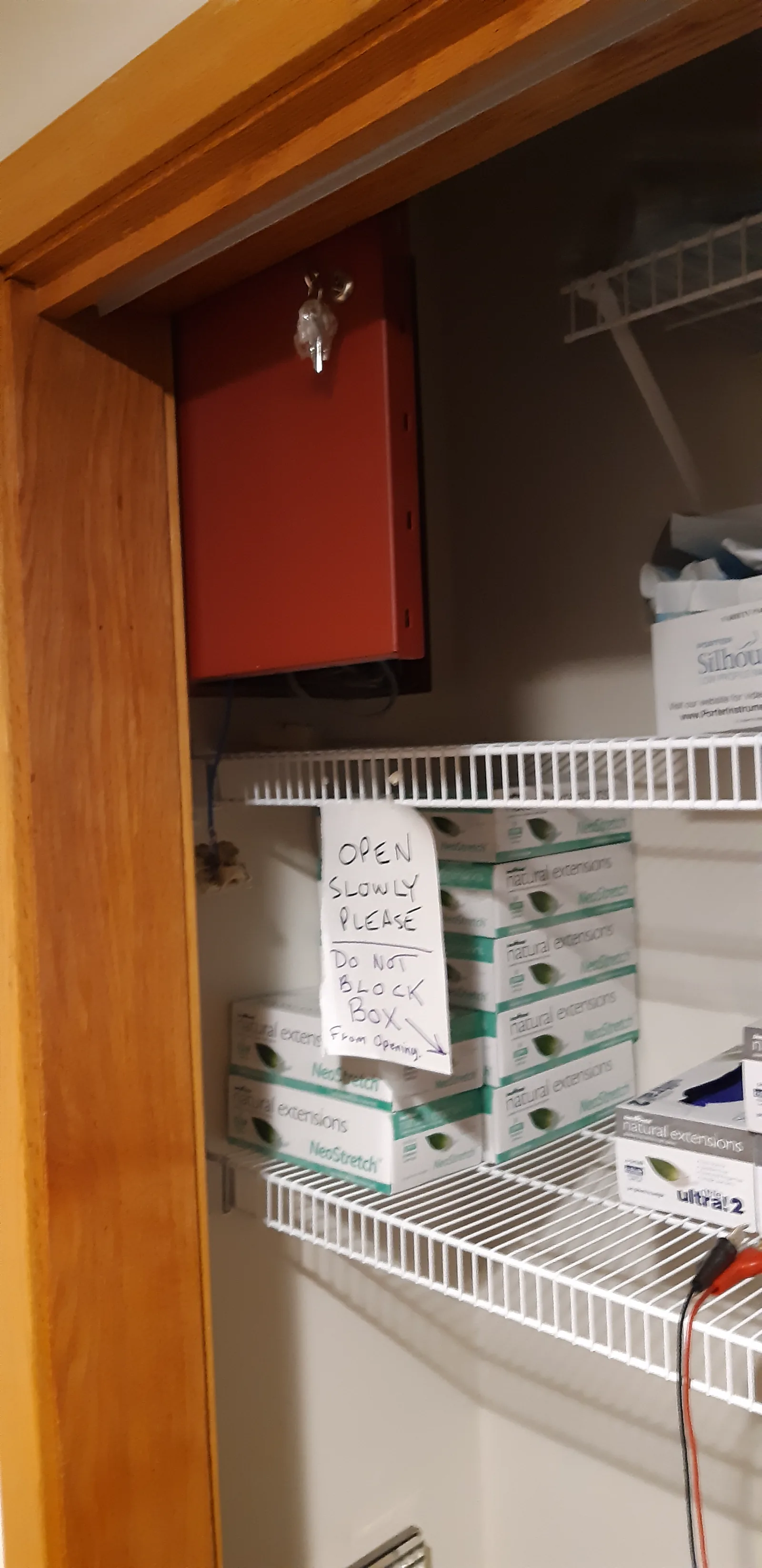

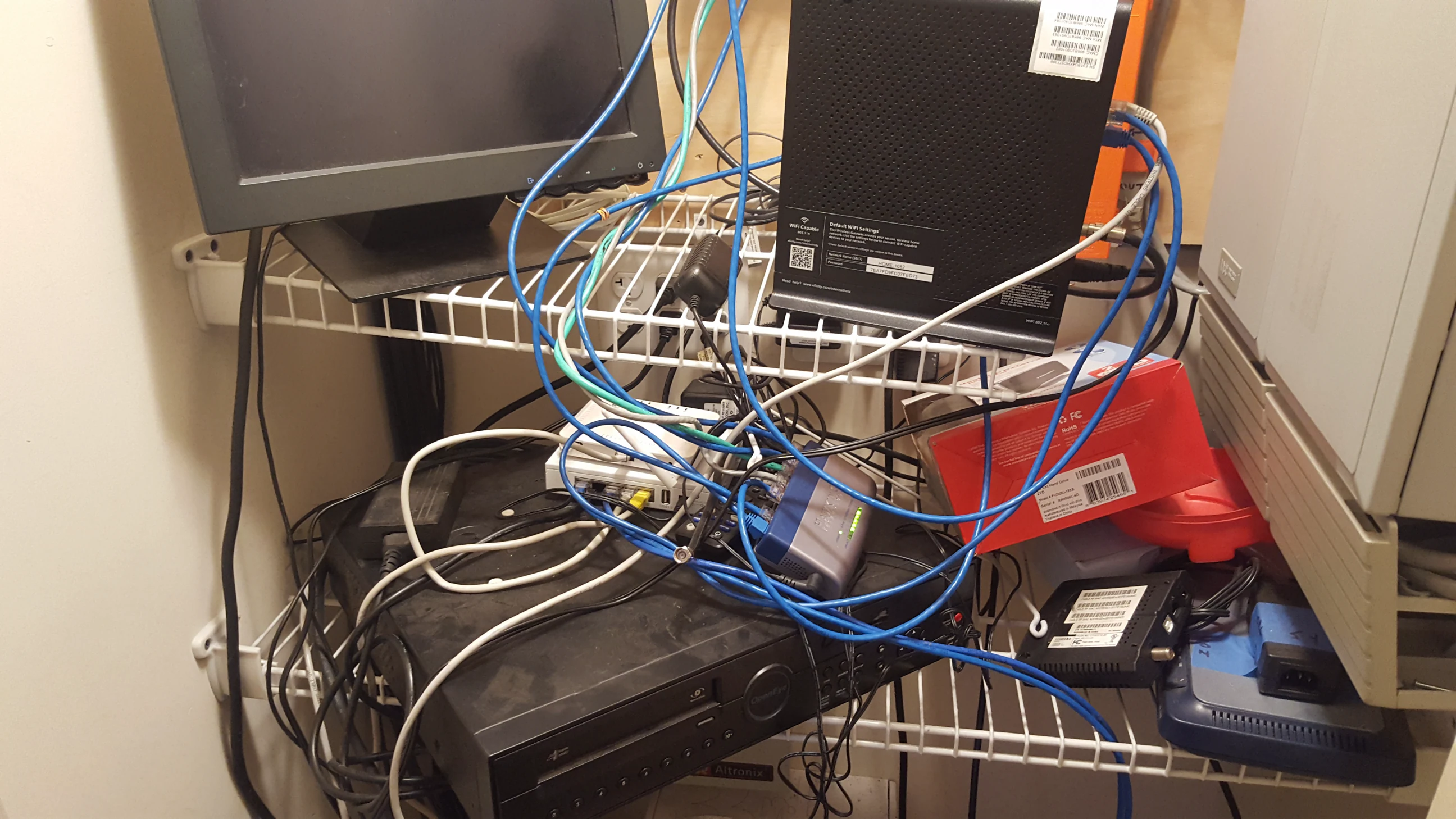

Just twist your head into there — Just twist your head into there.

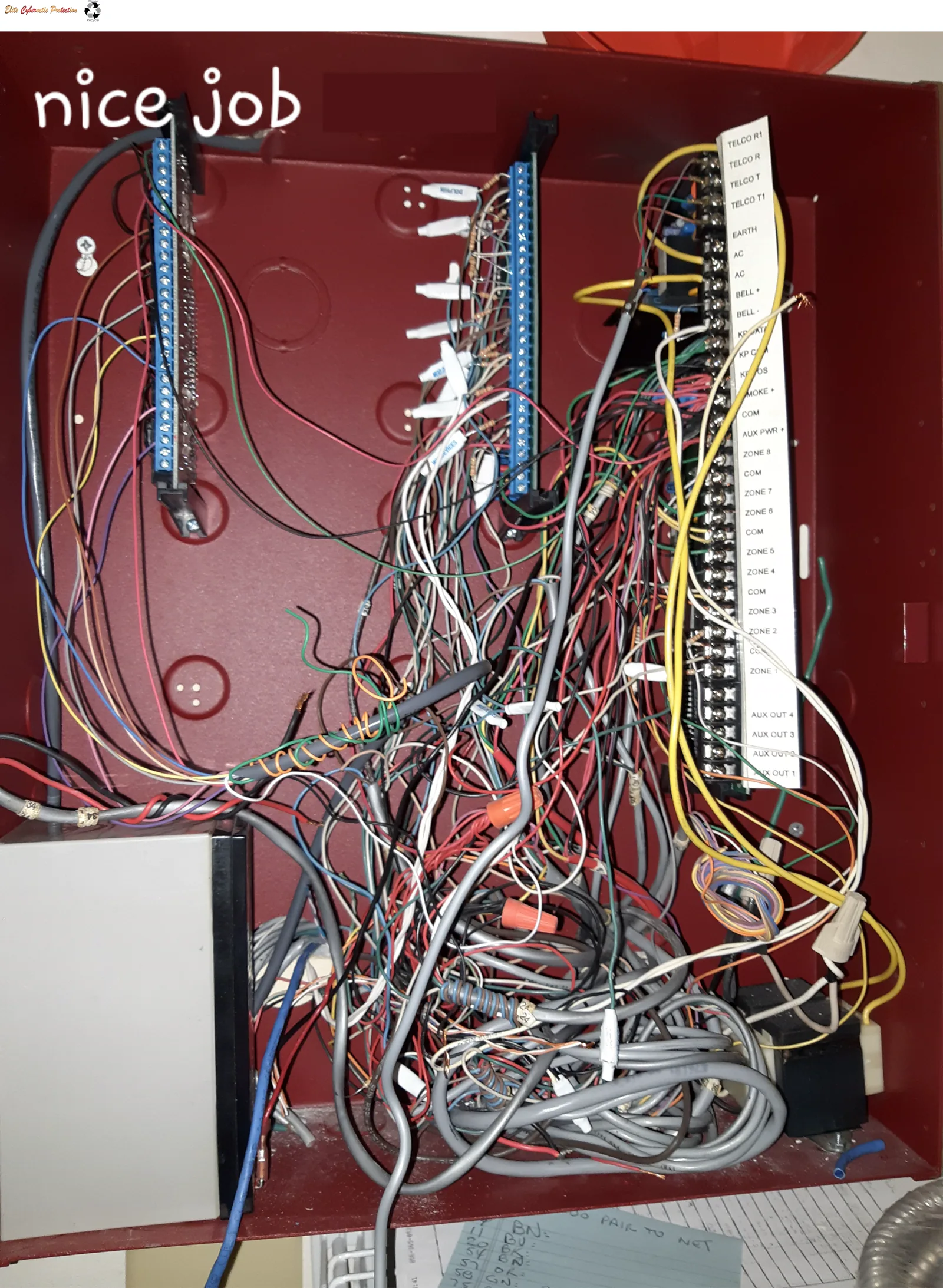

A densely tangled low-voltage panel — Feel sorry for the next installer.

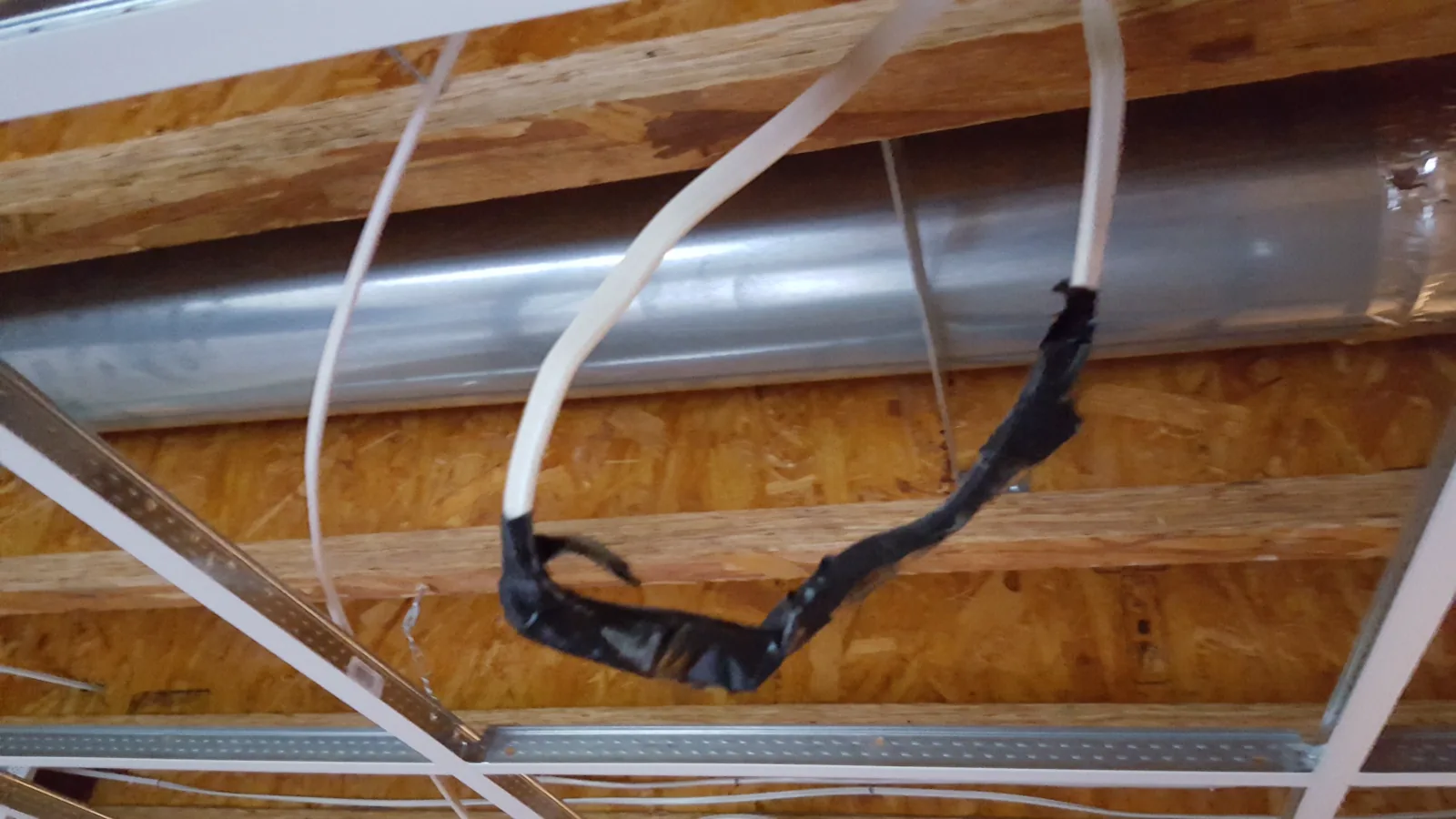

A flying 120-volt AC Romex splice wrapped in tape — 120 VAC Romex splice—the flying splice has tape!

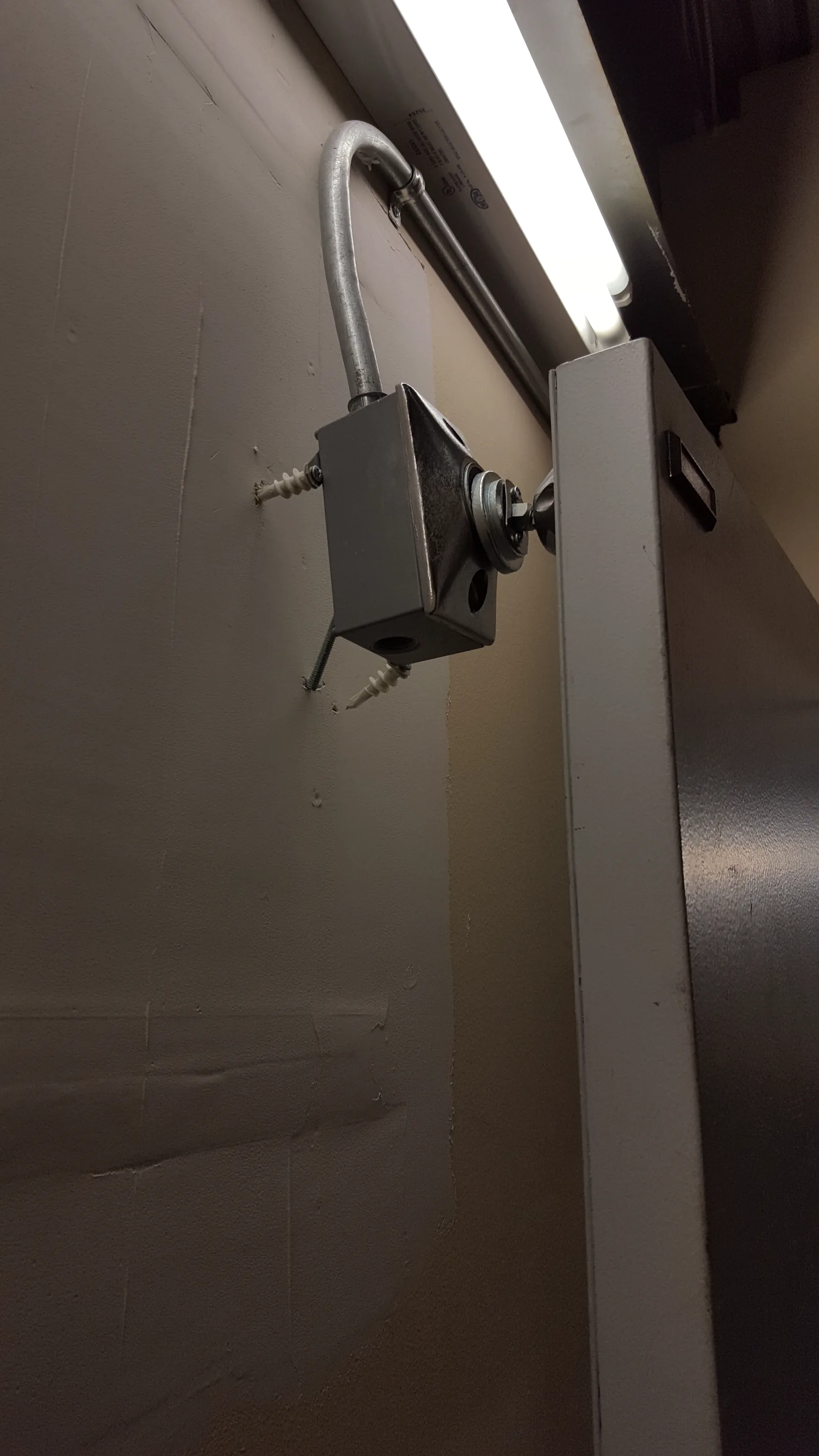

Damaged ceiling and exposed wiring — …that won’t happen again.

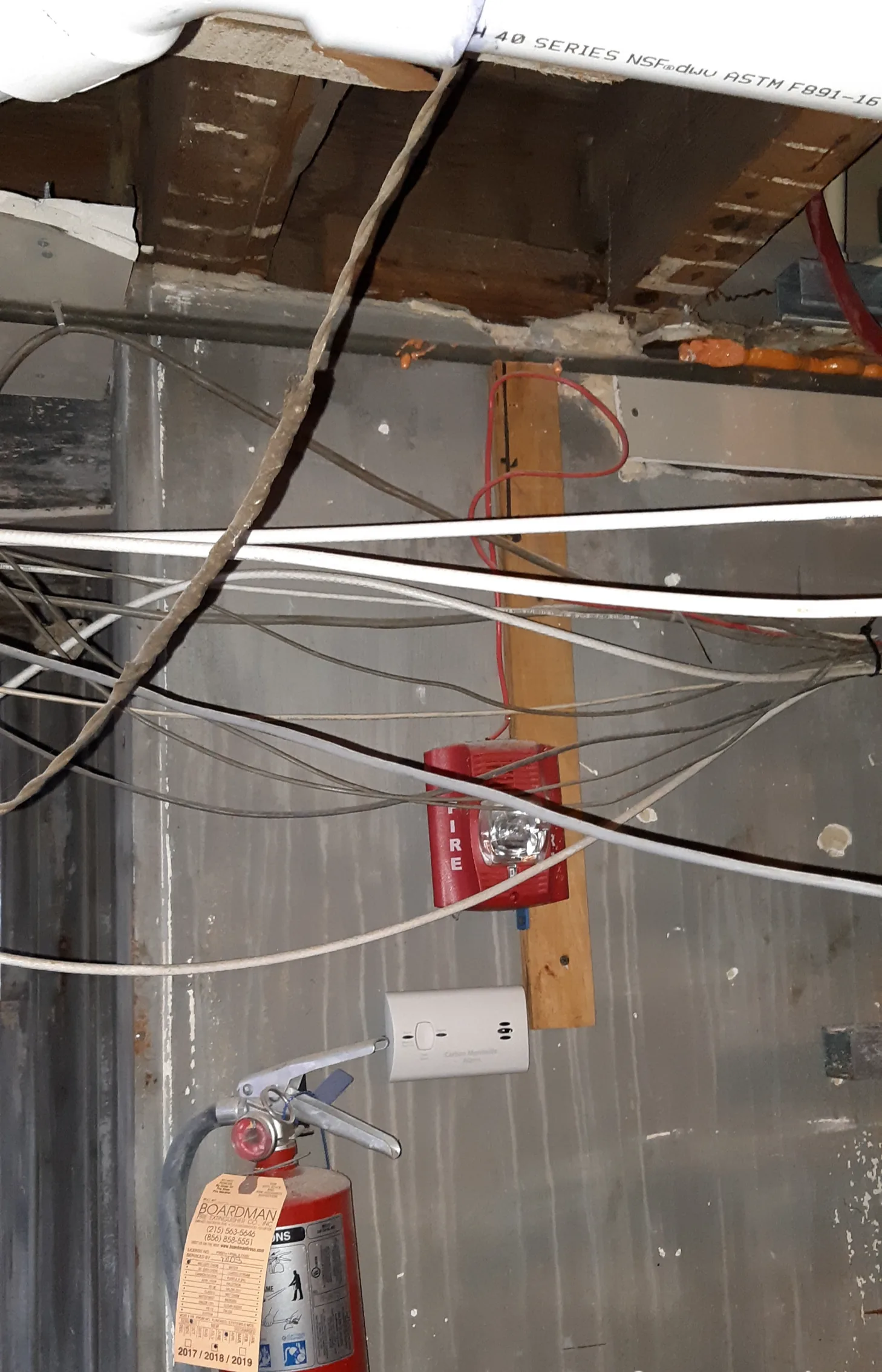

Class I and Class II wiring tied improperly — You can’t wire-tie Class I and II together, so…

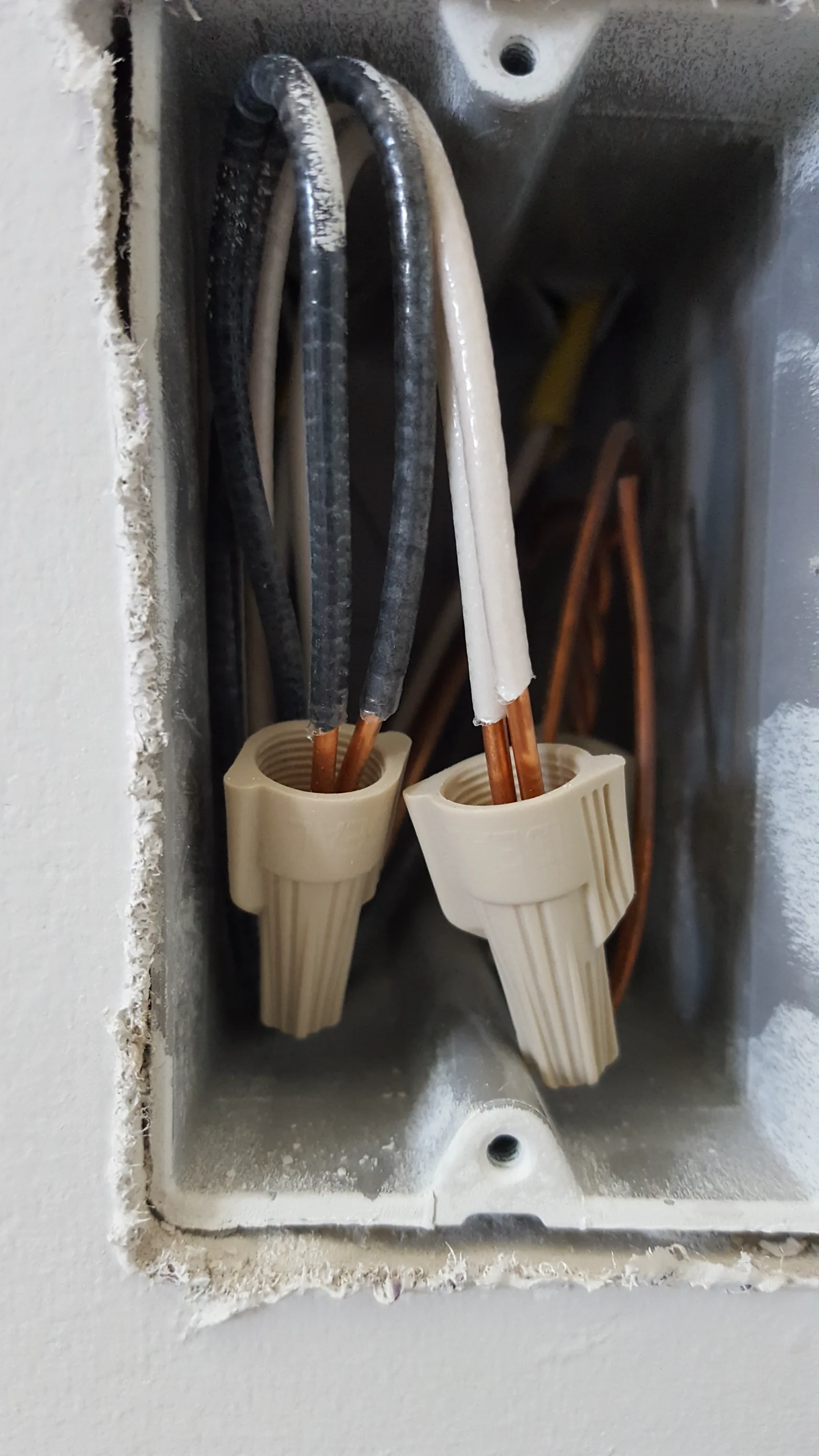

Improvised wiring support near a sprinkler pipe — Improvised support where none should be.

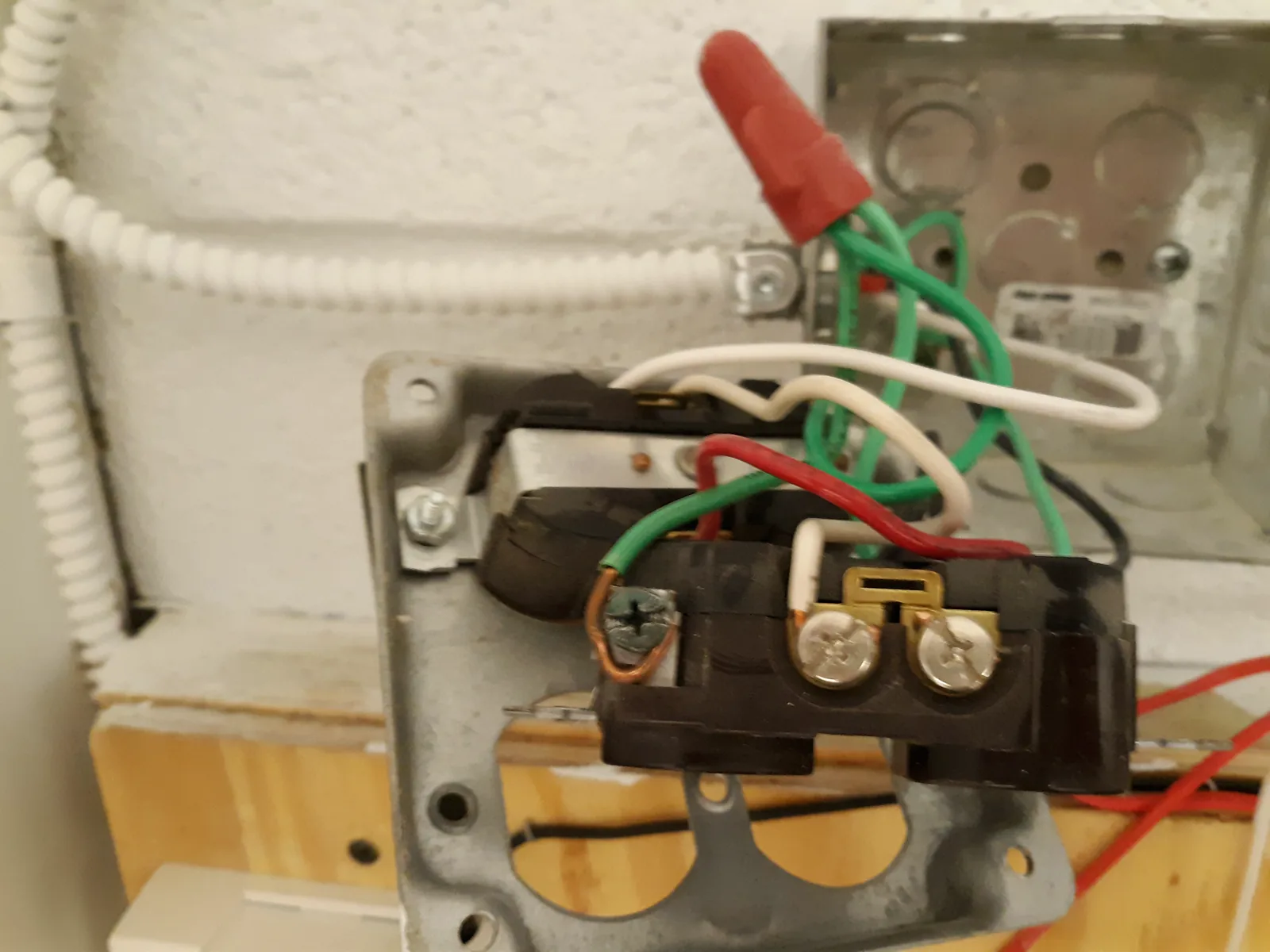

Unsafe transformer wiring — How many have they done like this?

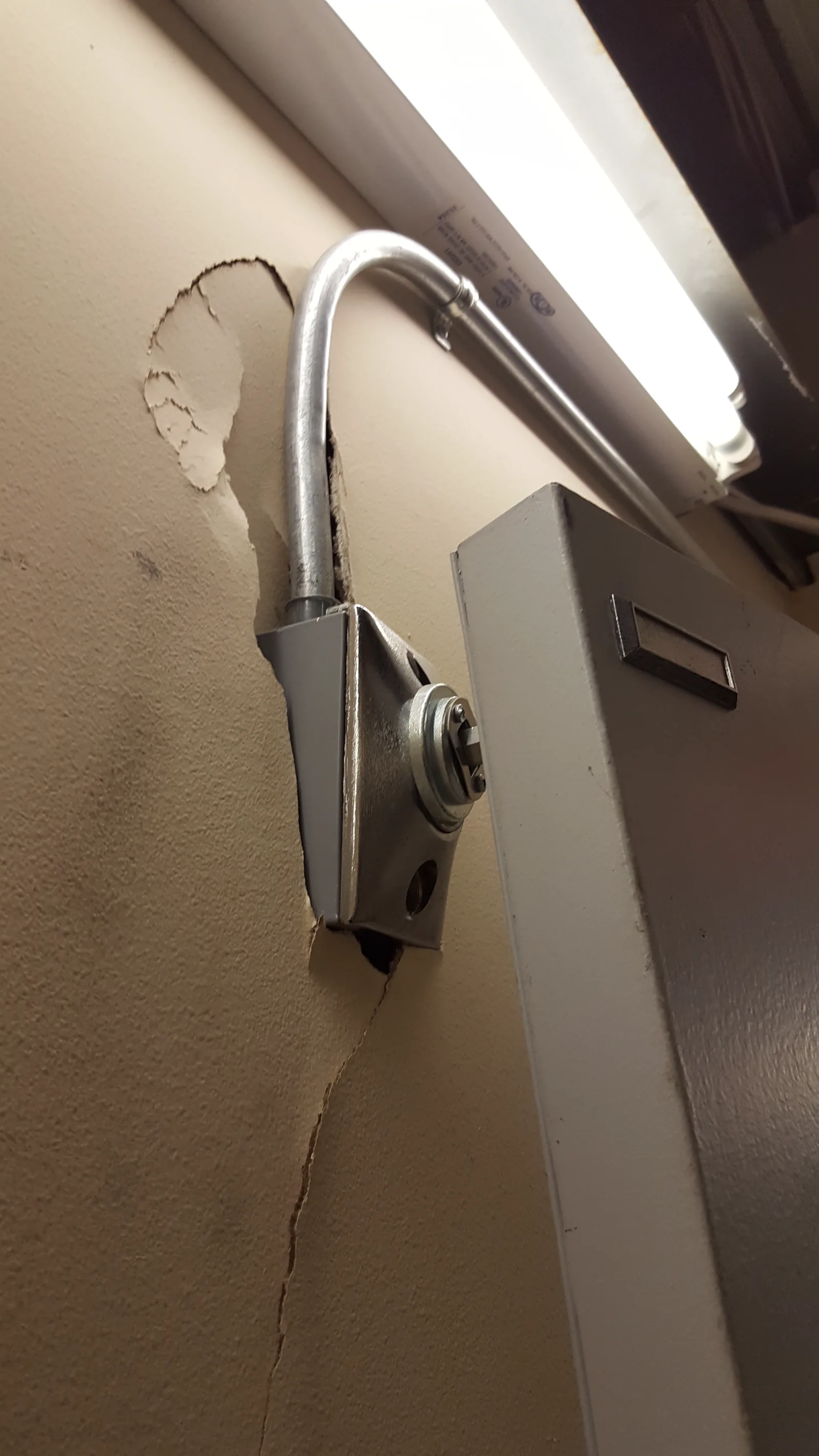

A poorly mounted device with visible cable — Oops.

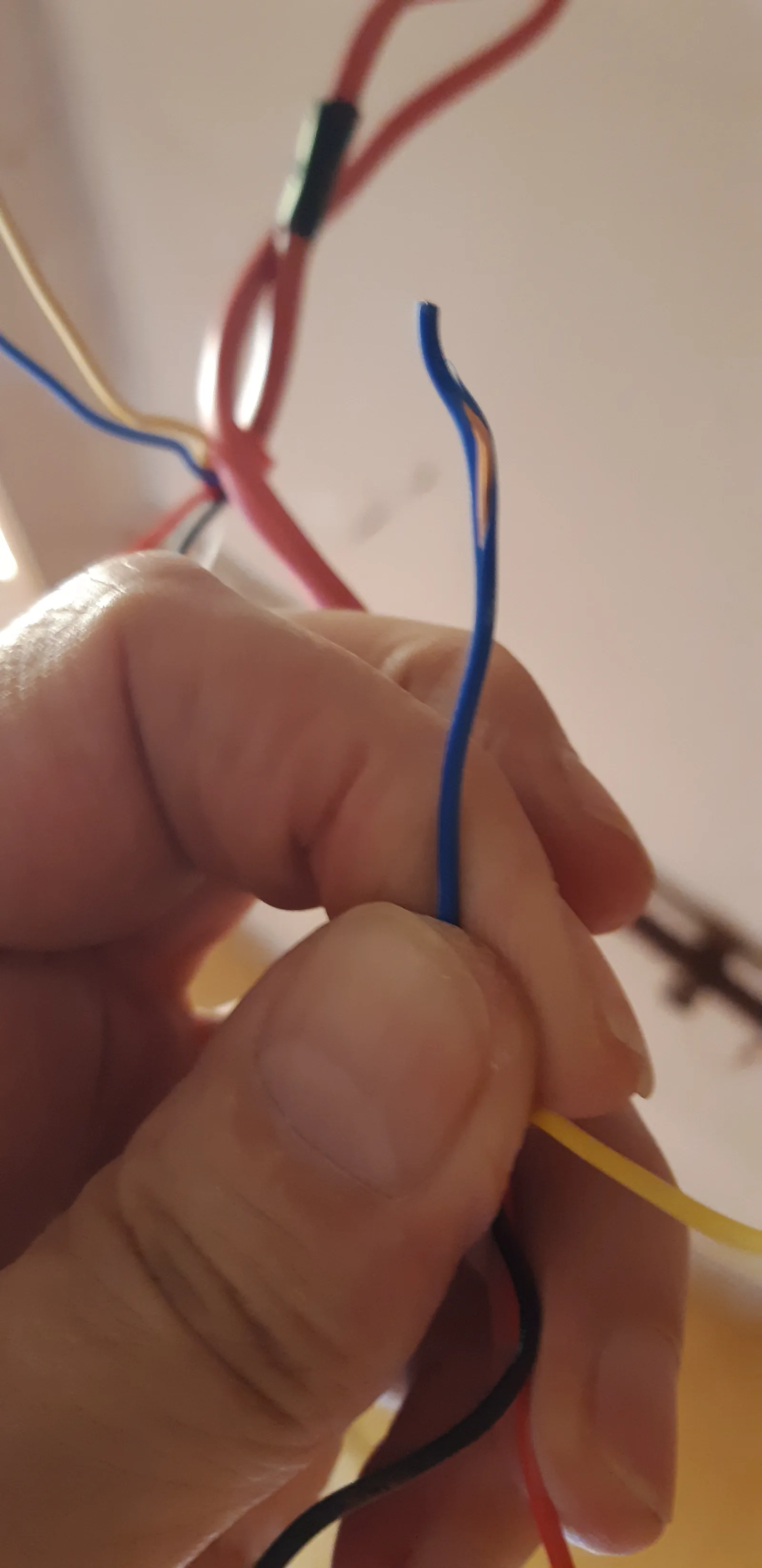

Poorly terminated wiring — When someone can’t use their main tool properly…

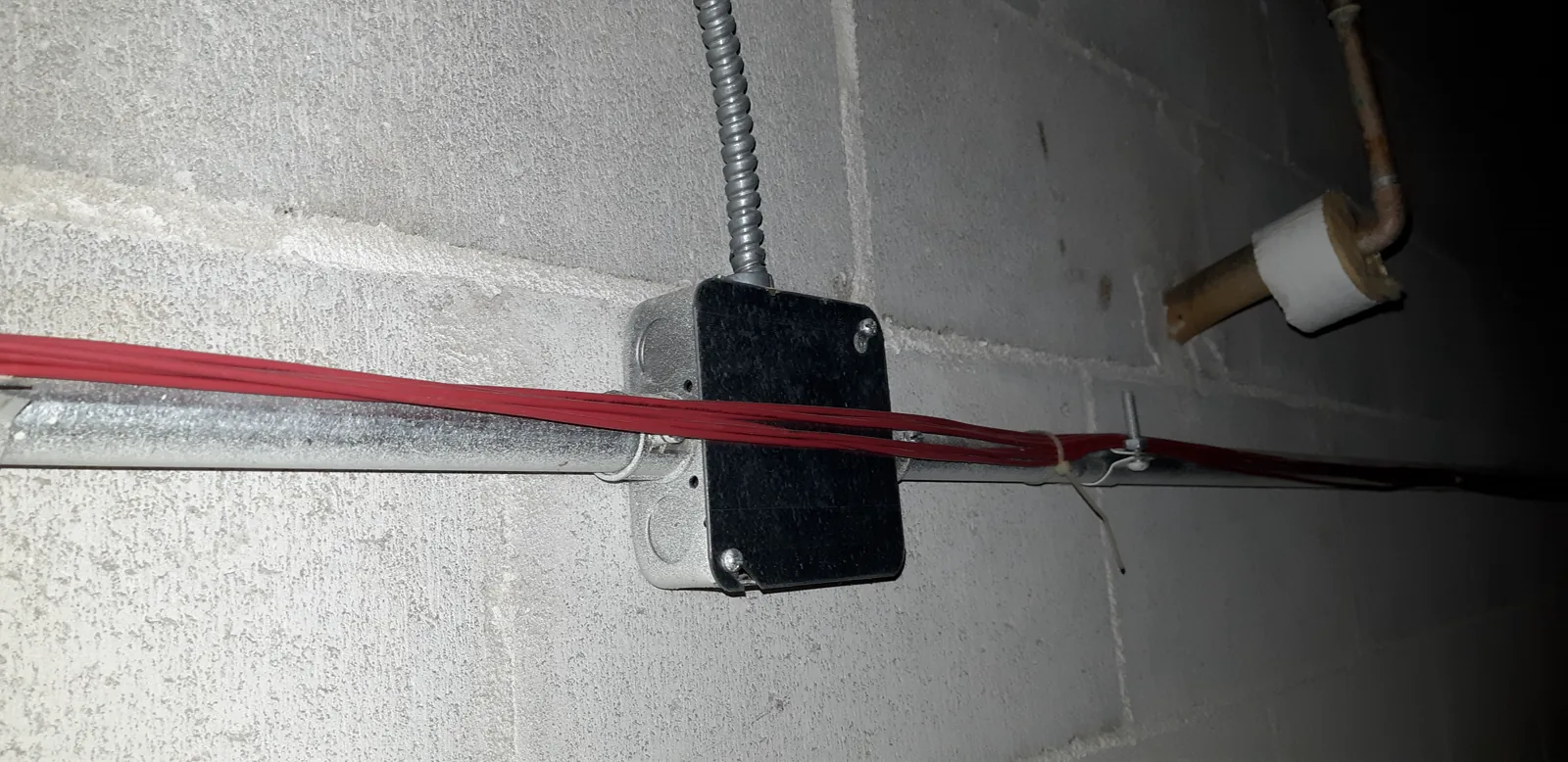

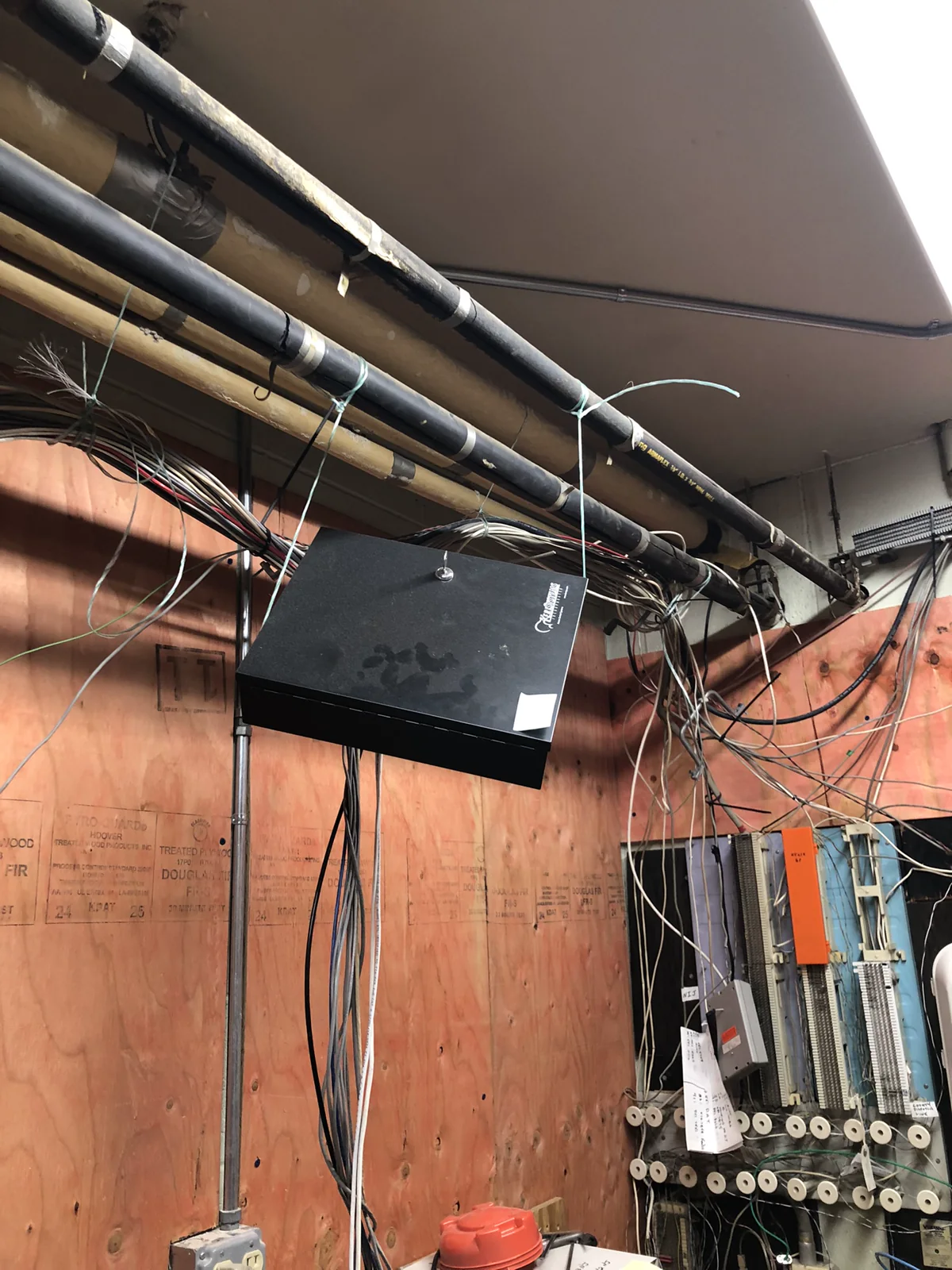

A crowded ceiling full of tangled cable — Where to even start?

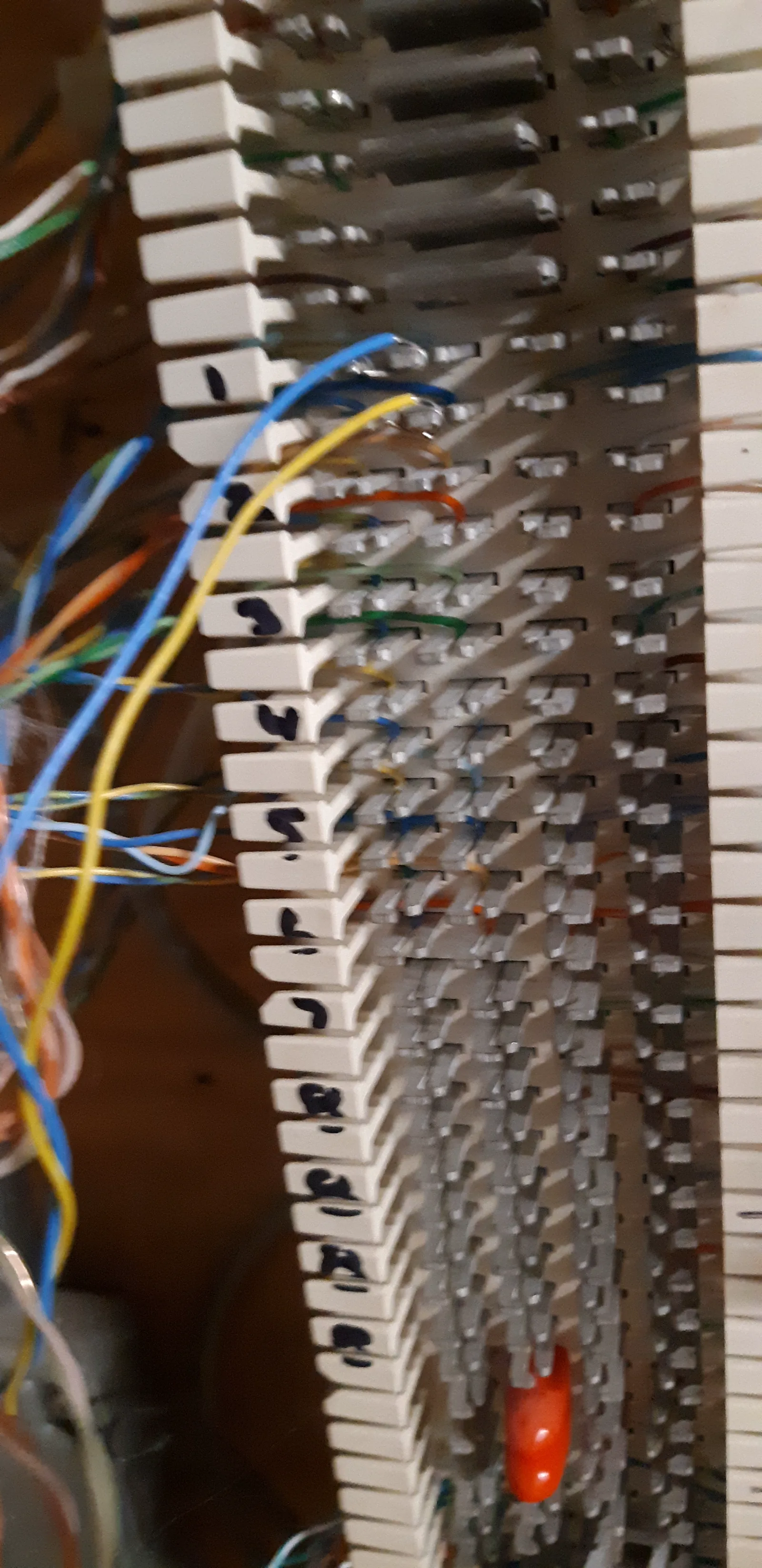

A damaged punch-down connection — IT pro tried to solder a punch-down.

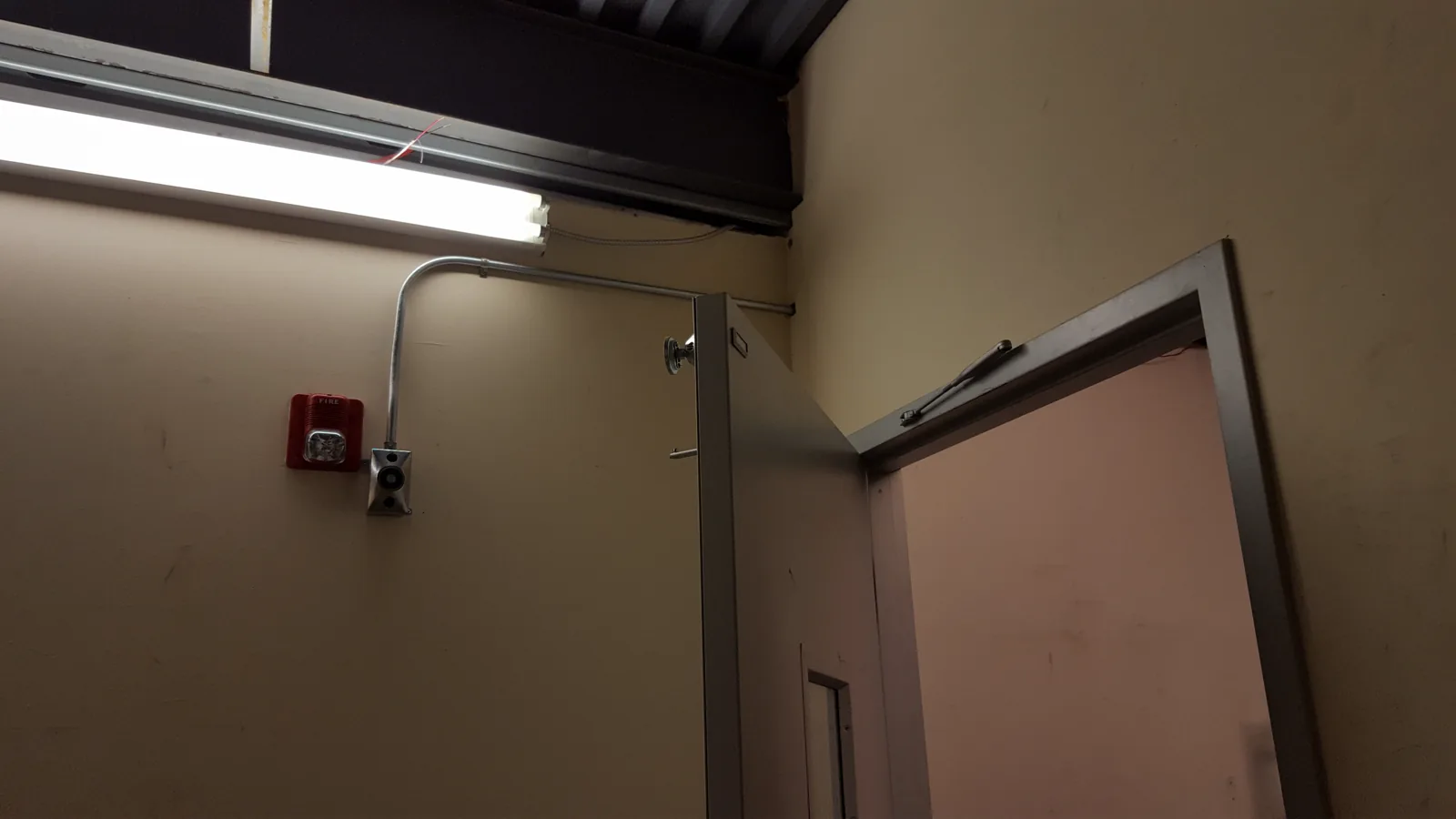

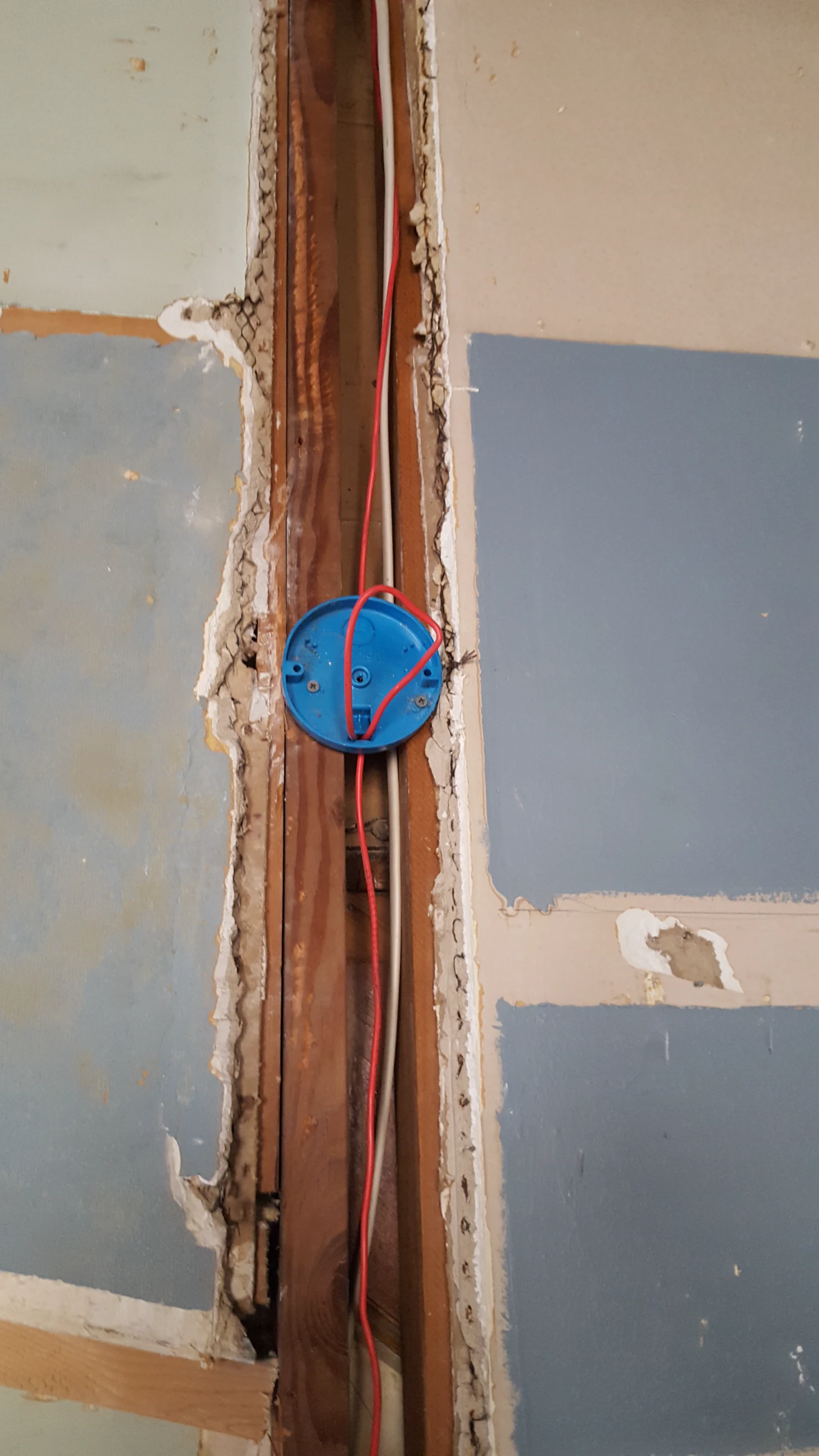

Unusual wall-mounted cable path — No violation—just weird.

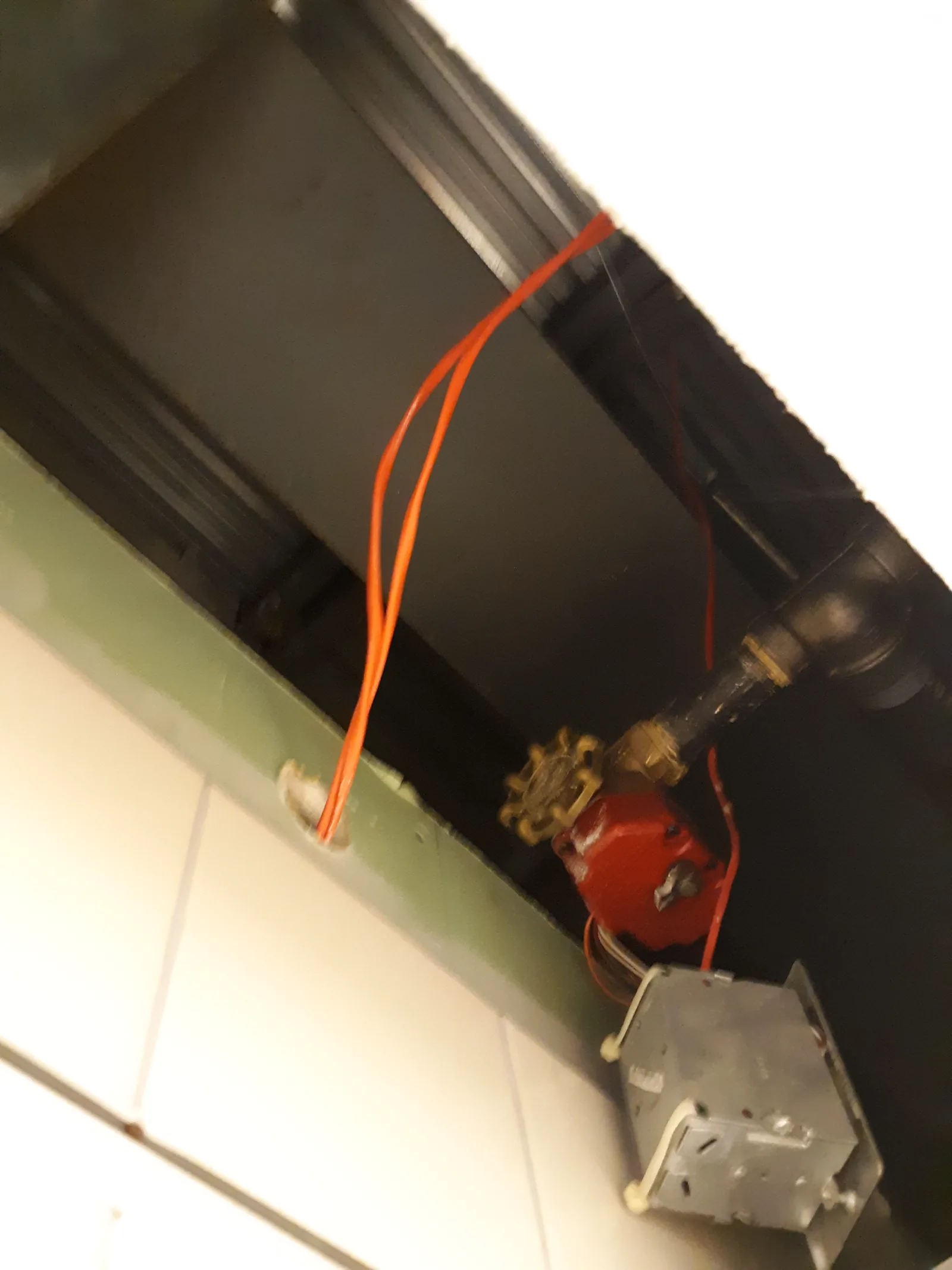

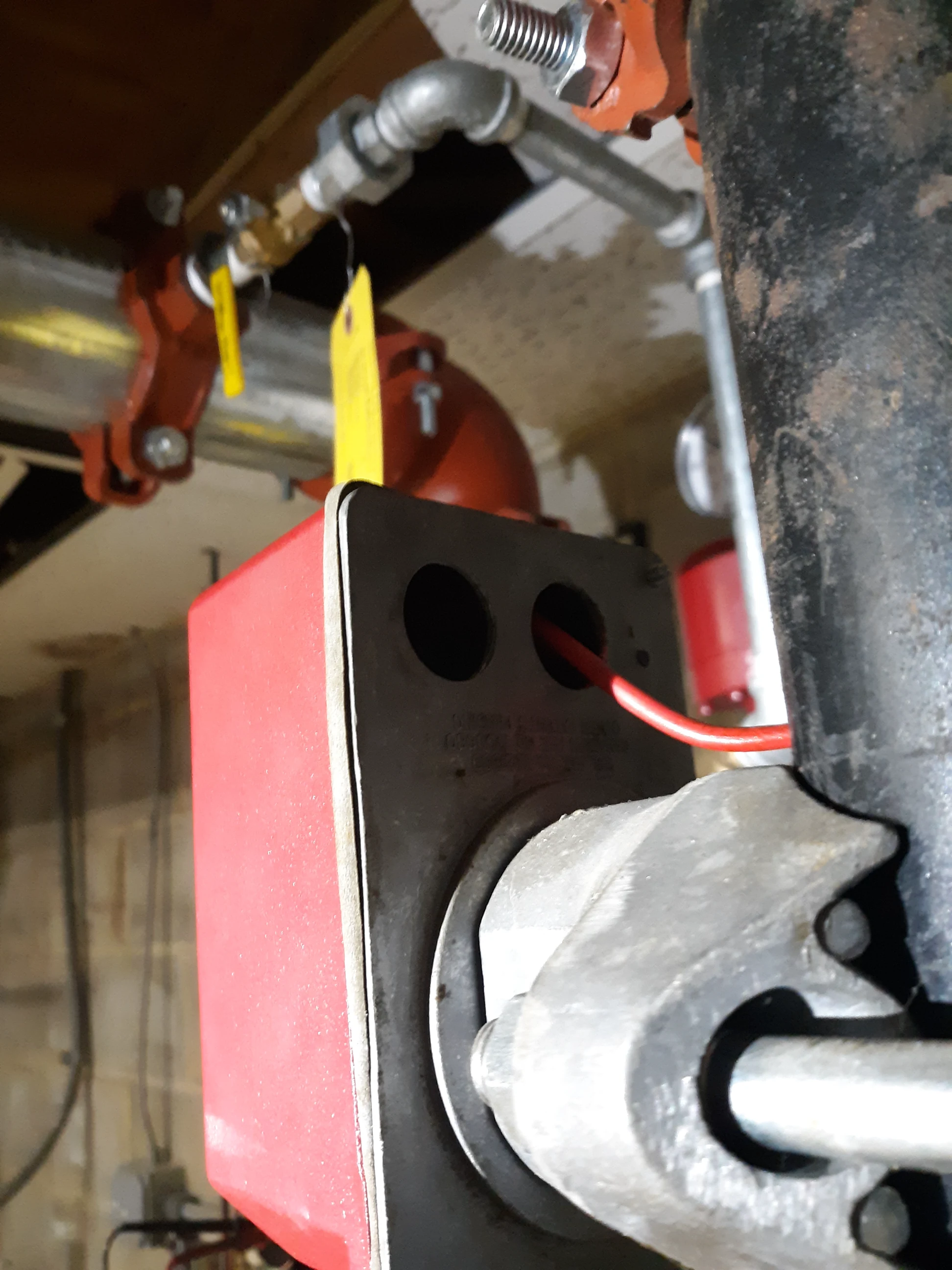

A junction box hanging from a sprinkler valve and feed wires — “J-box” hangs from sprinkler valve and feed wires.

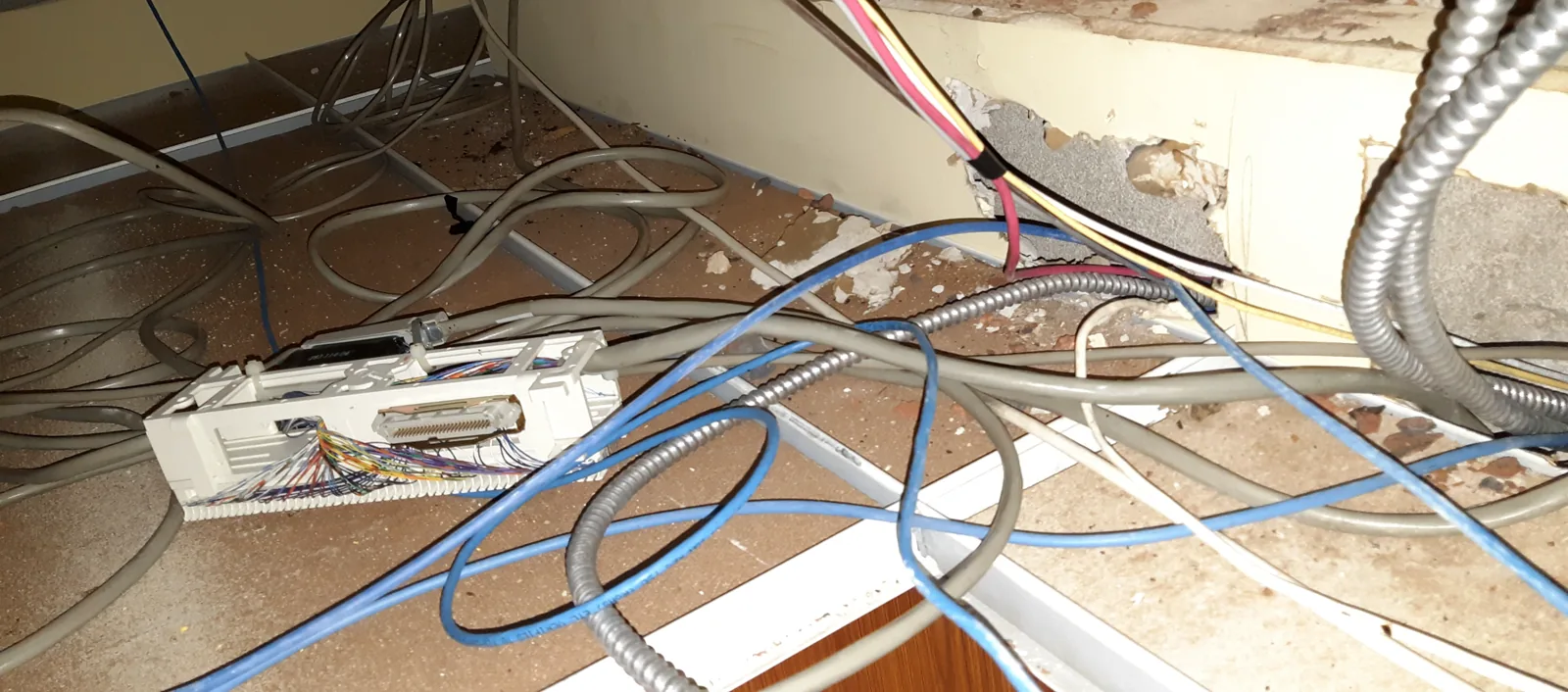

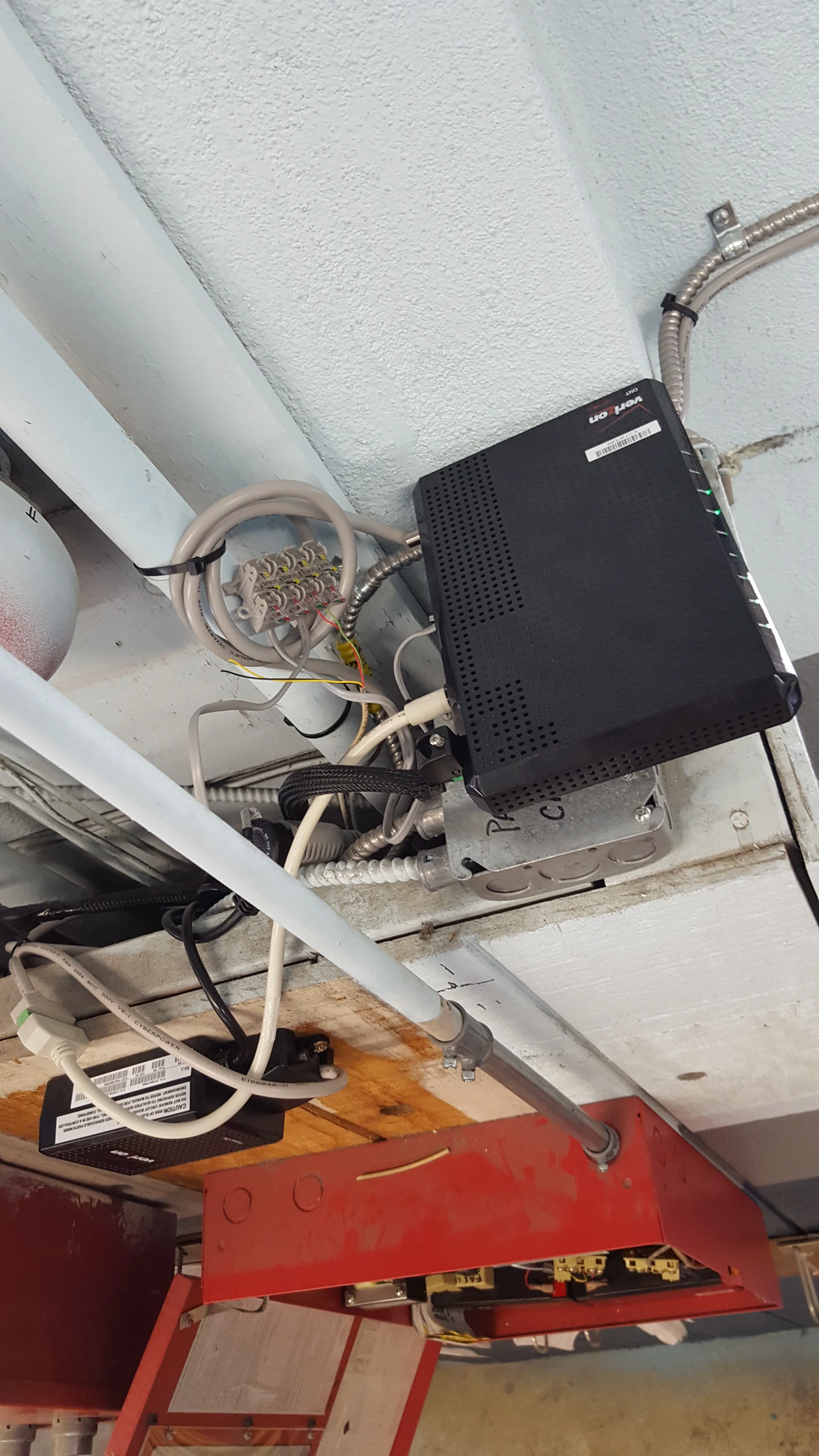

Open office ceiling filled with loose cable — Your office ceiling?

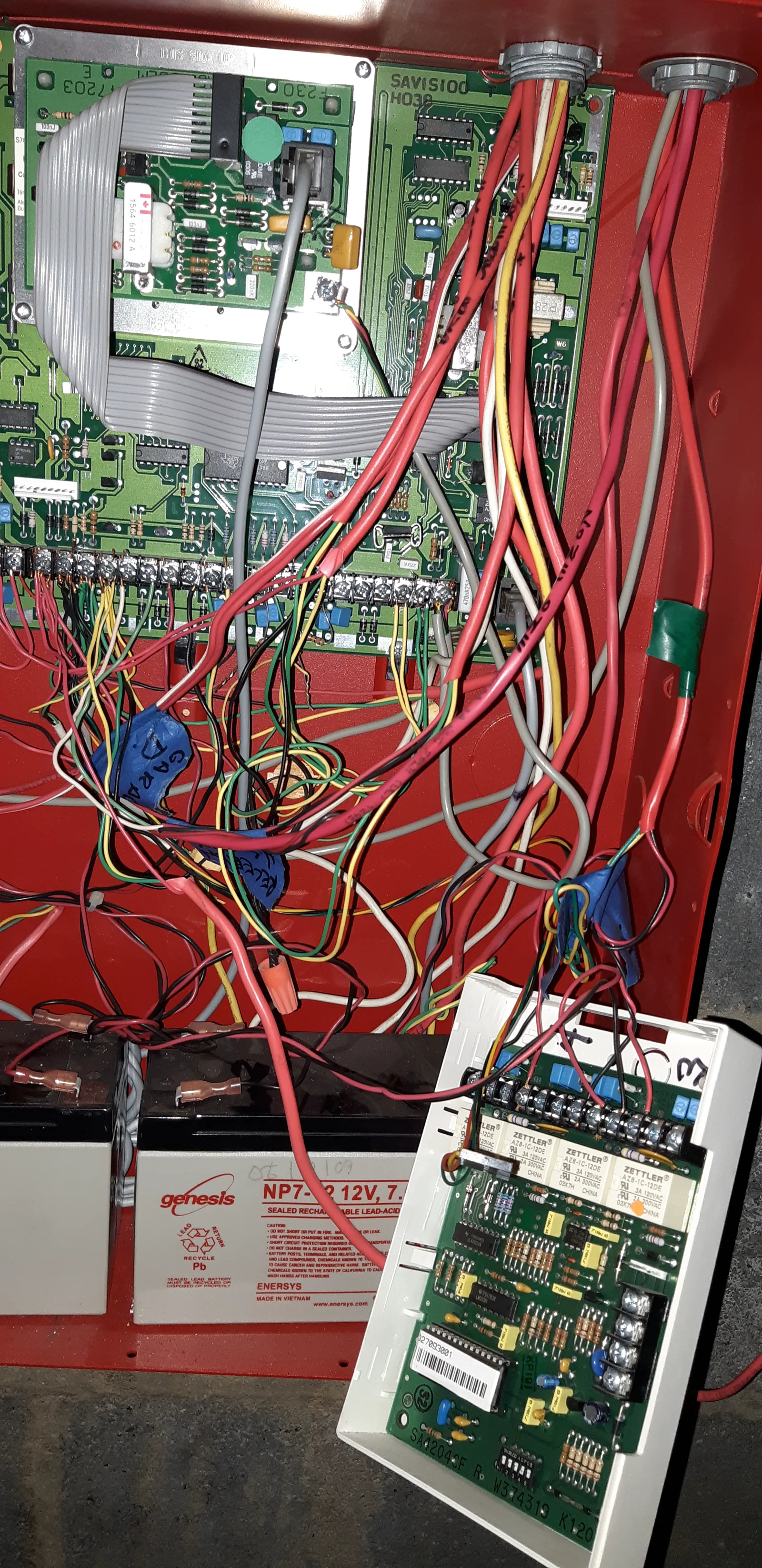

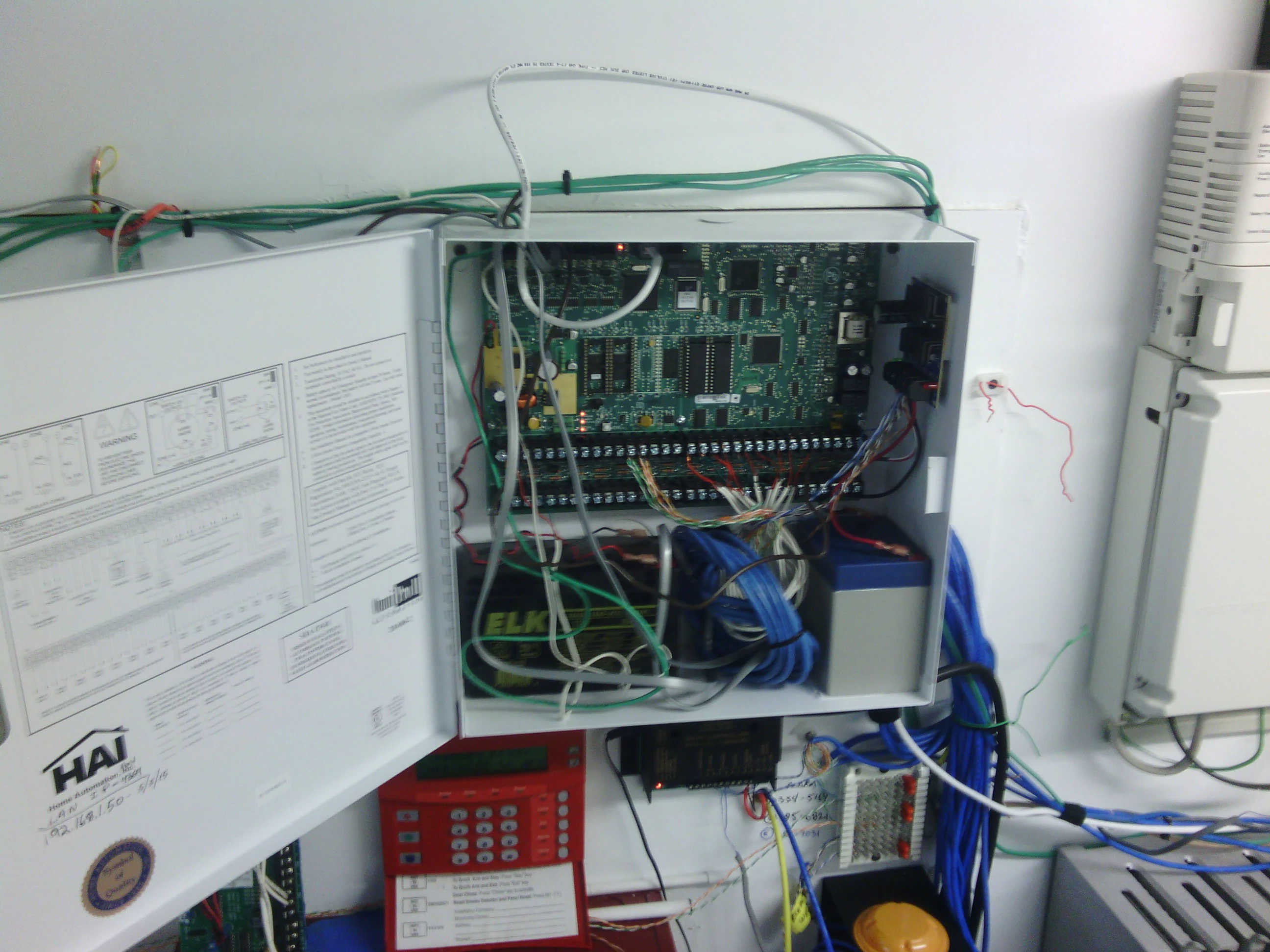

A badly installed low-voltage panel — The “competition.”

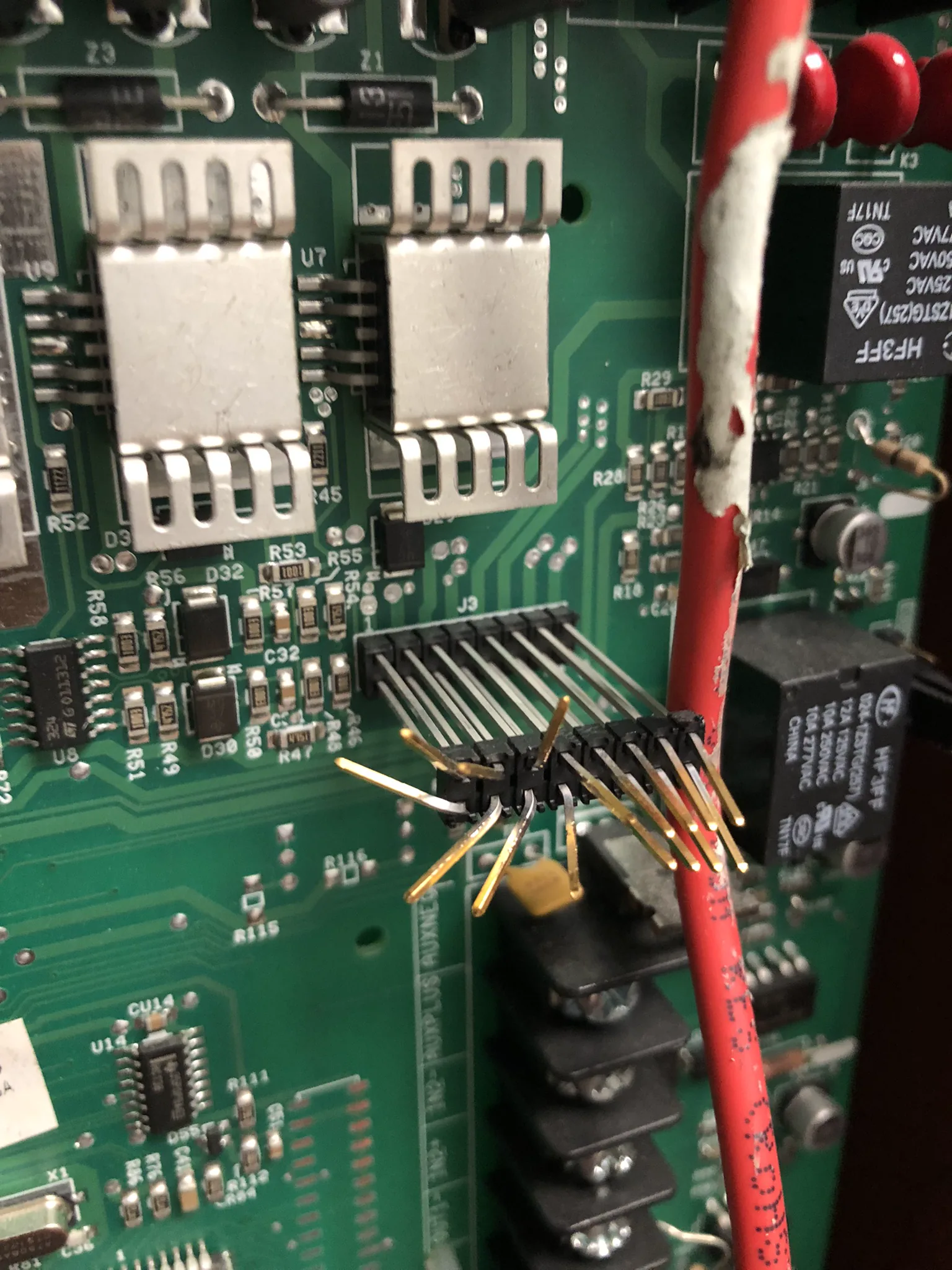

Overfilled panel blocking future accessories — No accessory add-on now!

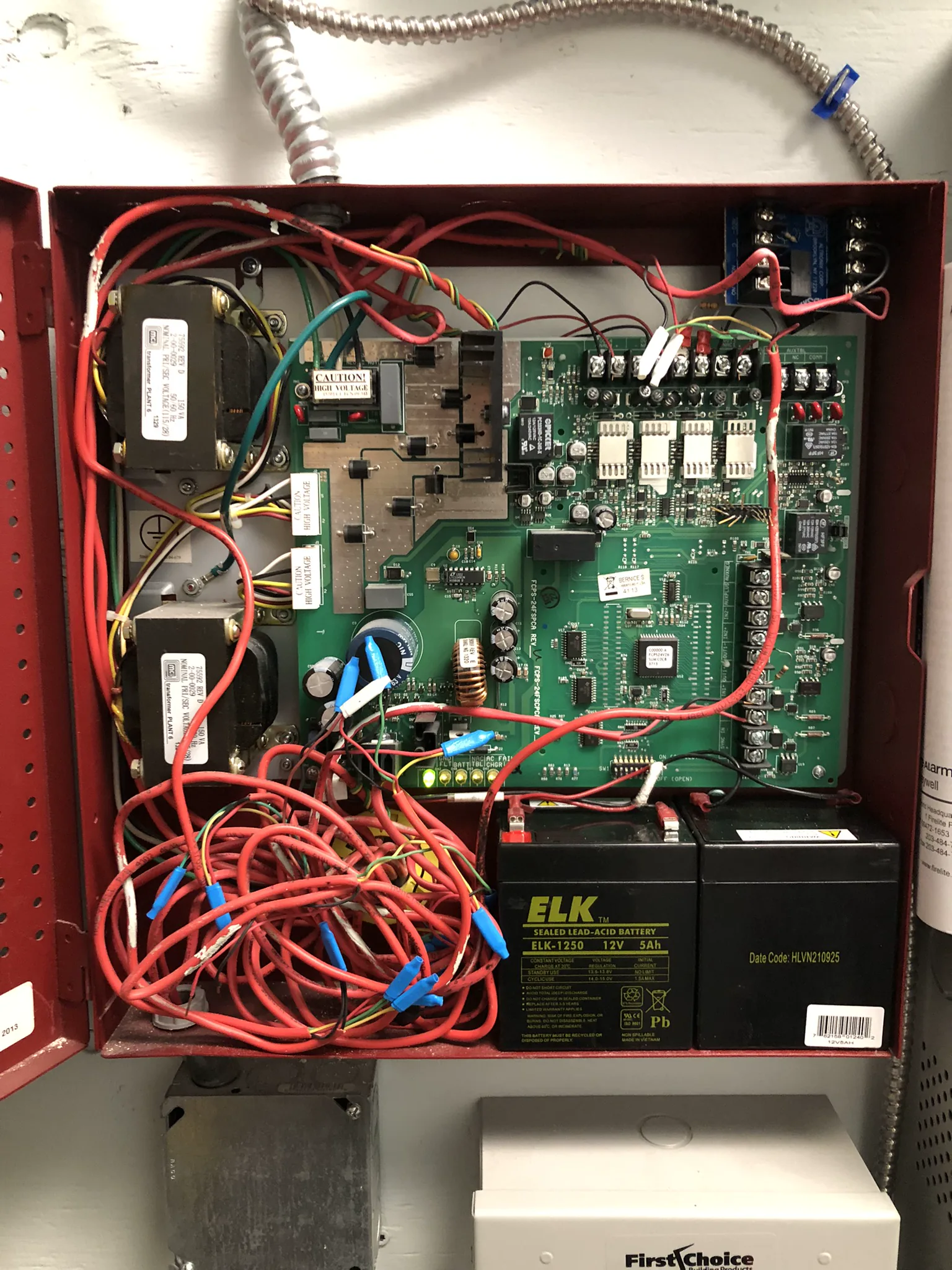

Poorly installed life-safety notification panel — Nice life-safety notification panel.

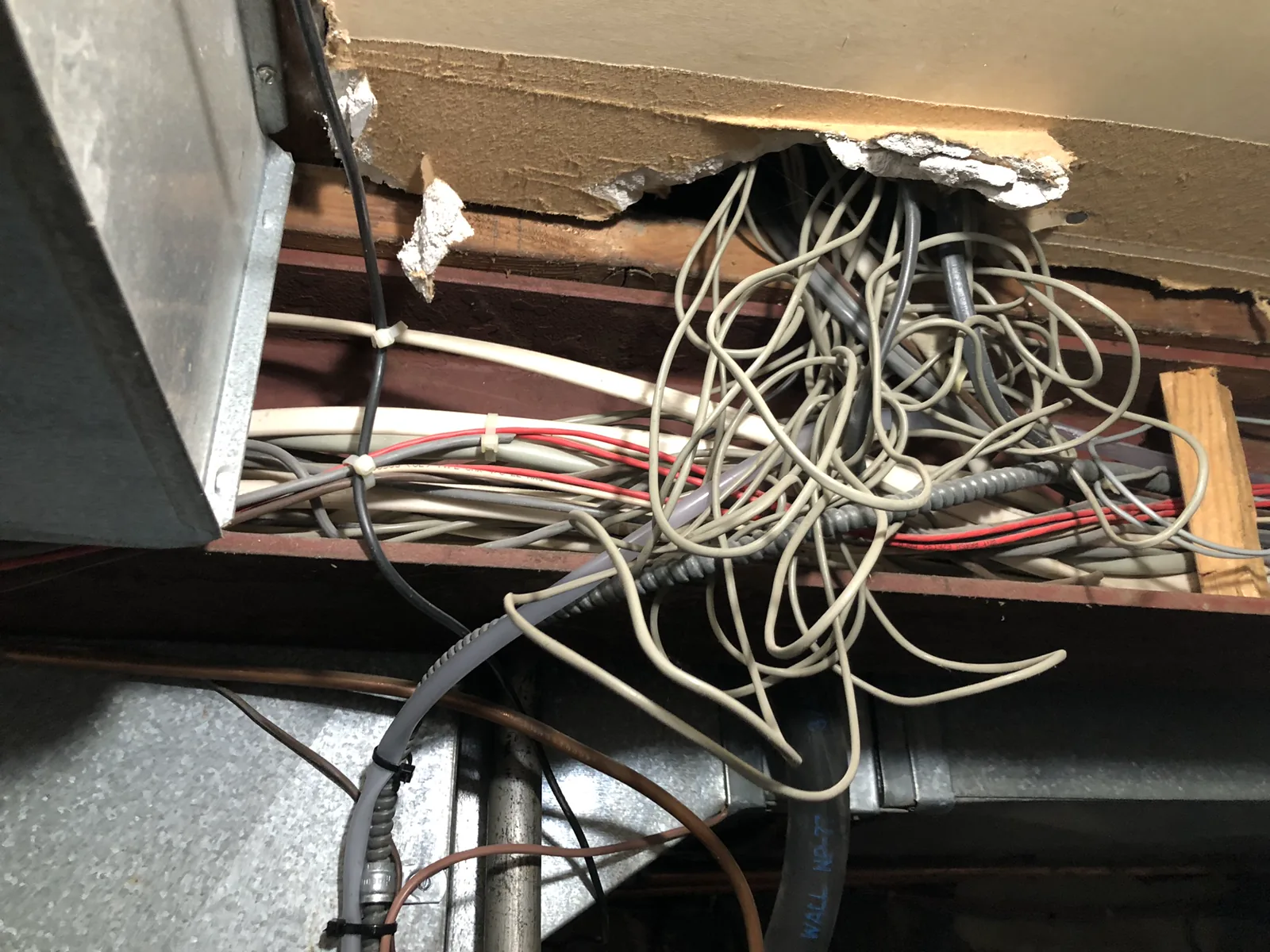

Loose wiring left inside a panel — I’m just going to leave this here.

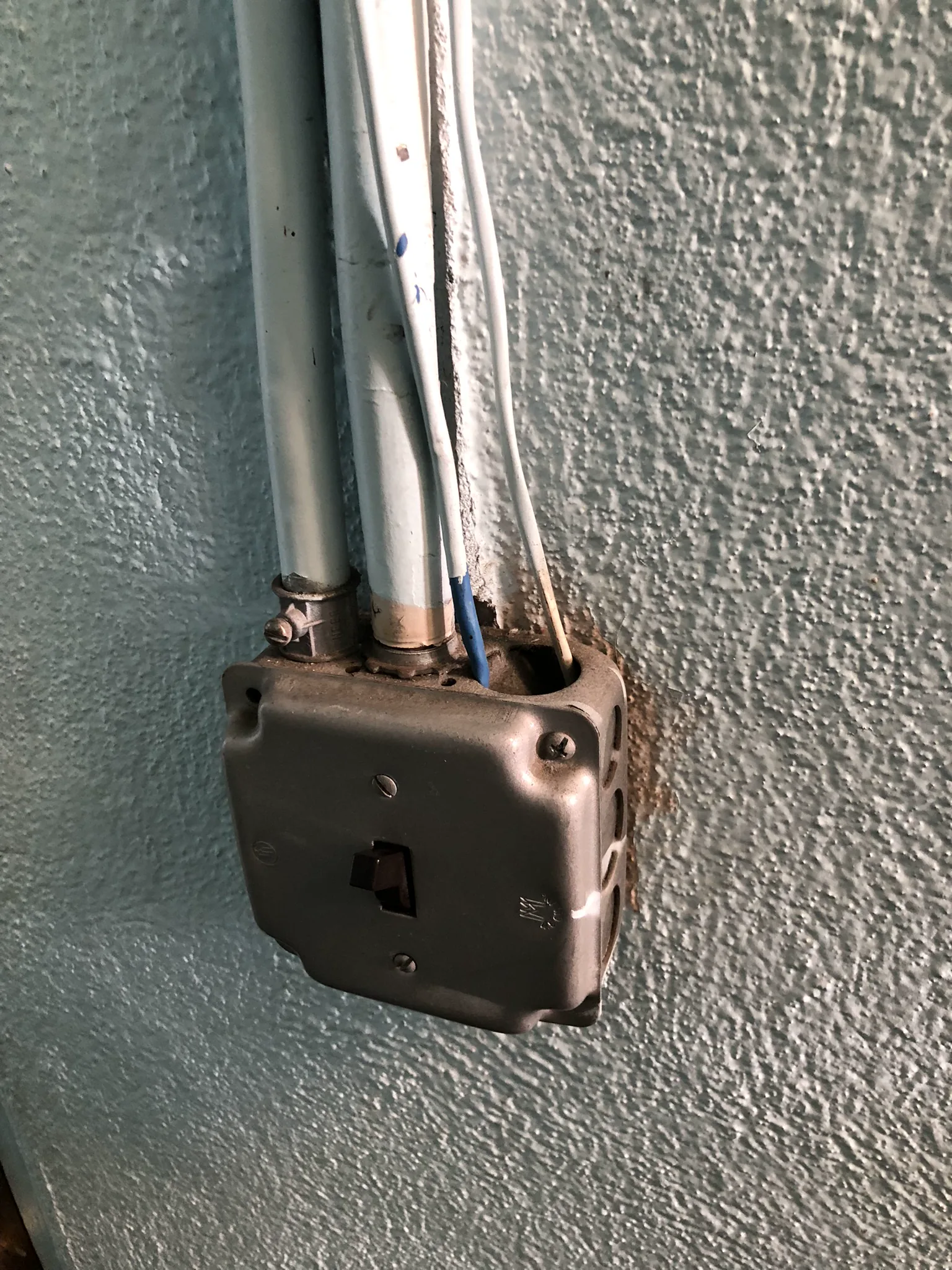

Power and low-voltage wiring without proper separation — Minimum separation?

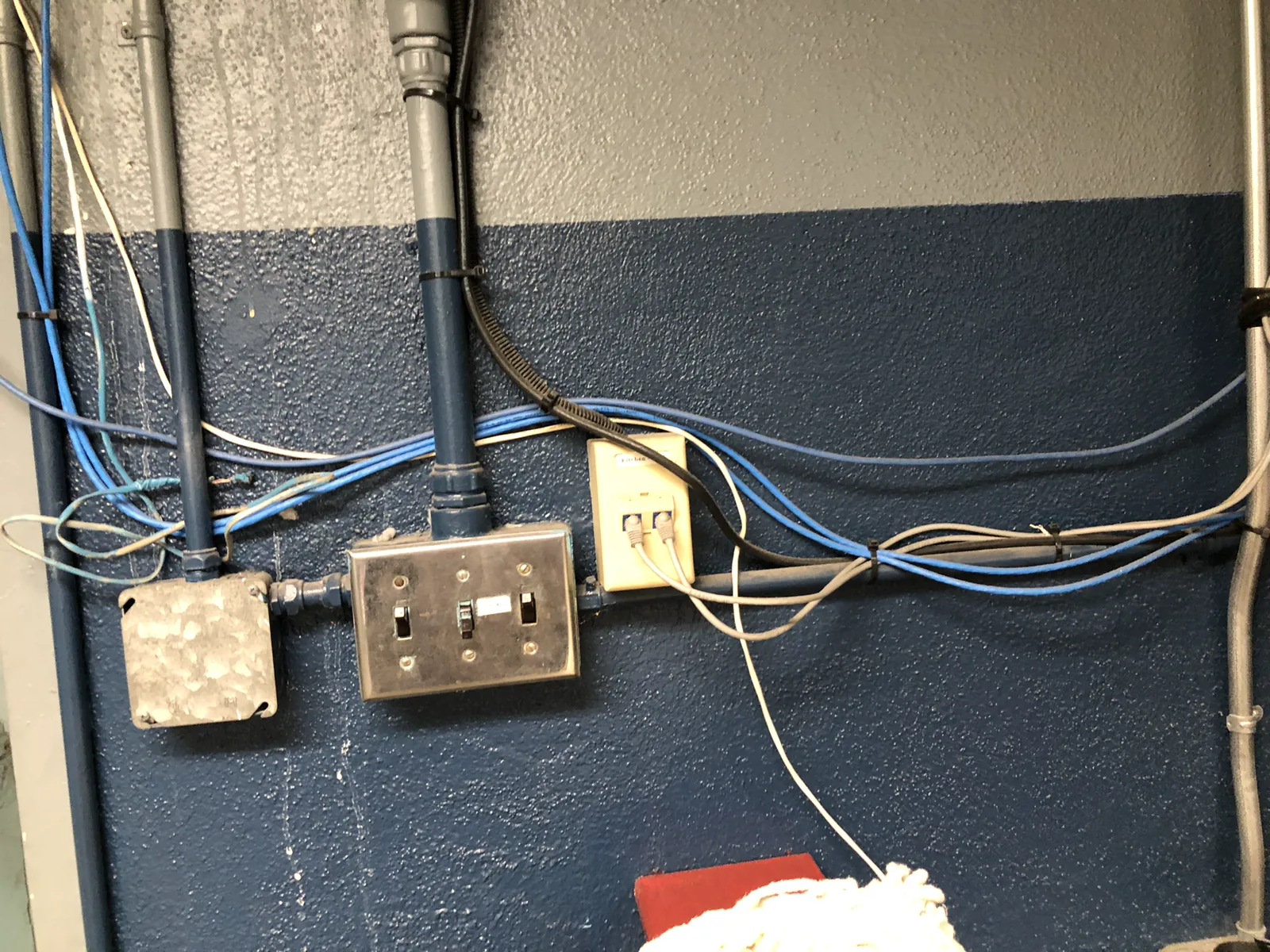

Loose field wiring in an enclosure — Loose field wiring in an enclosure.

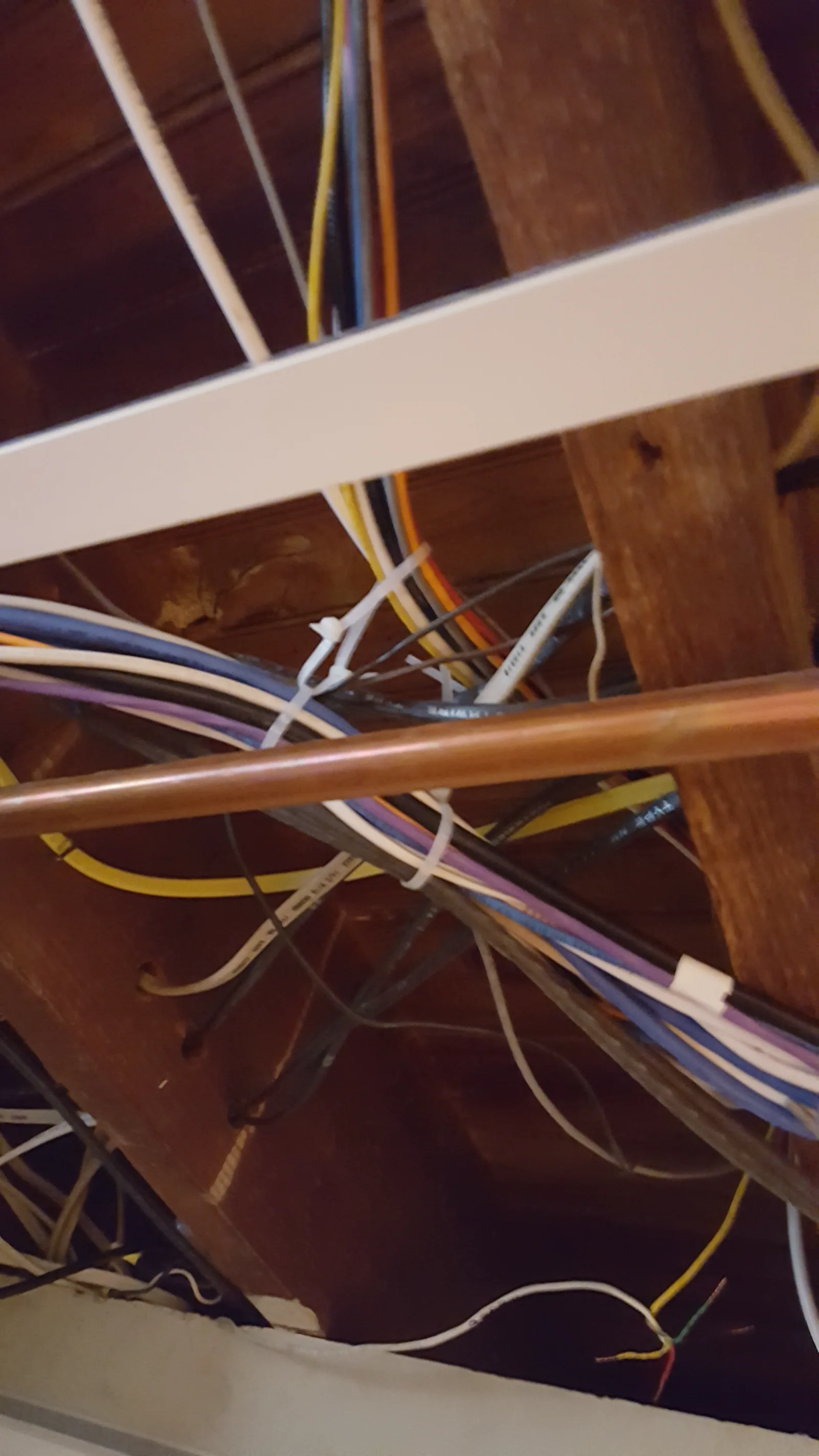

An installation that nearly met the requirement — …so close.

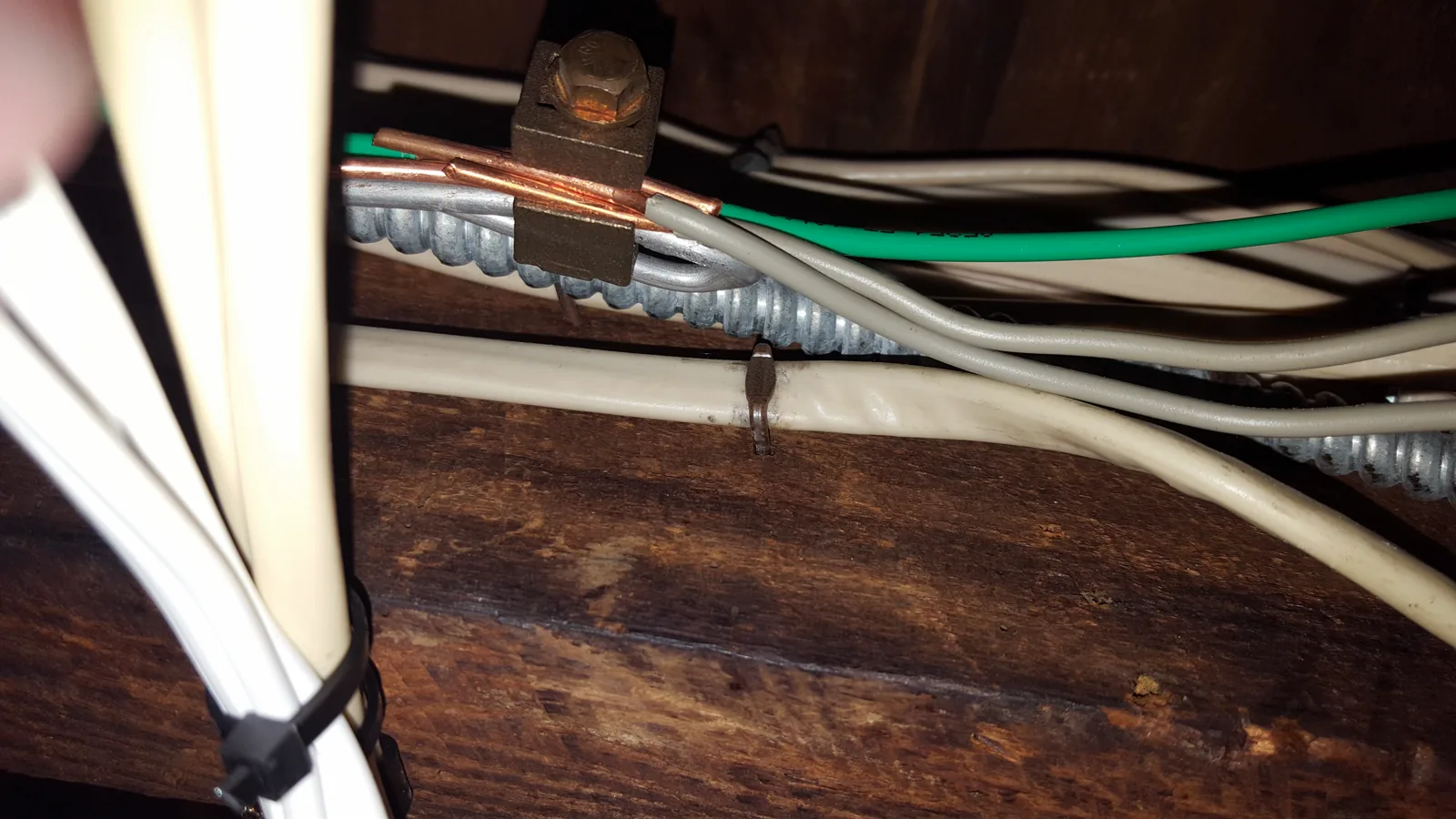

A loose equipment grounding connection — It was a ground until I bumped it.

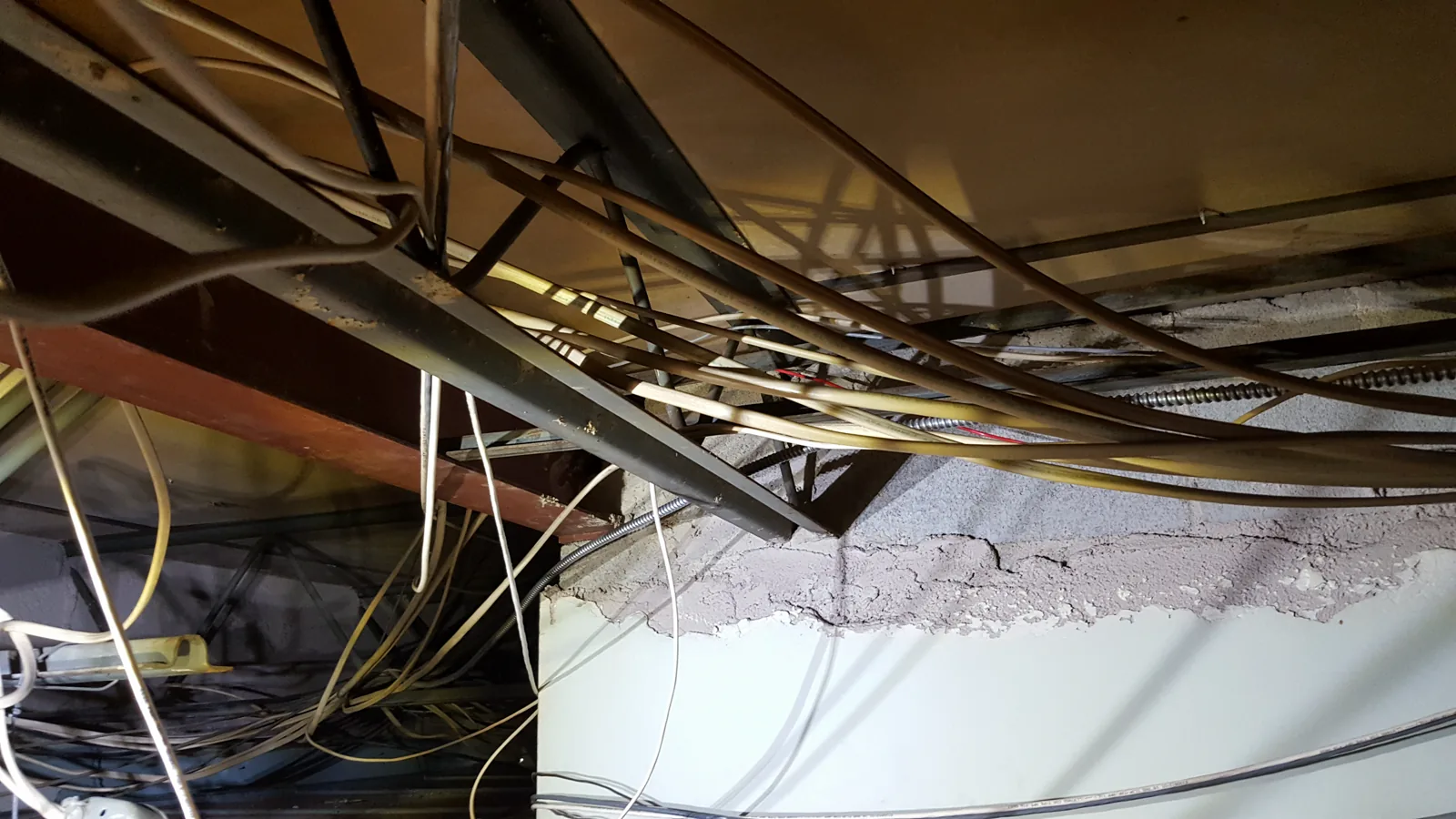

Wiring without minimum separation — Minimum separation? What’s that?

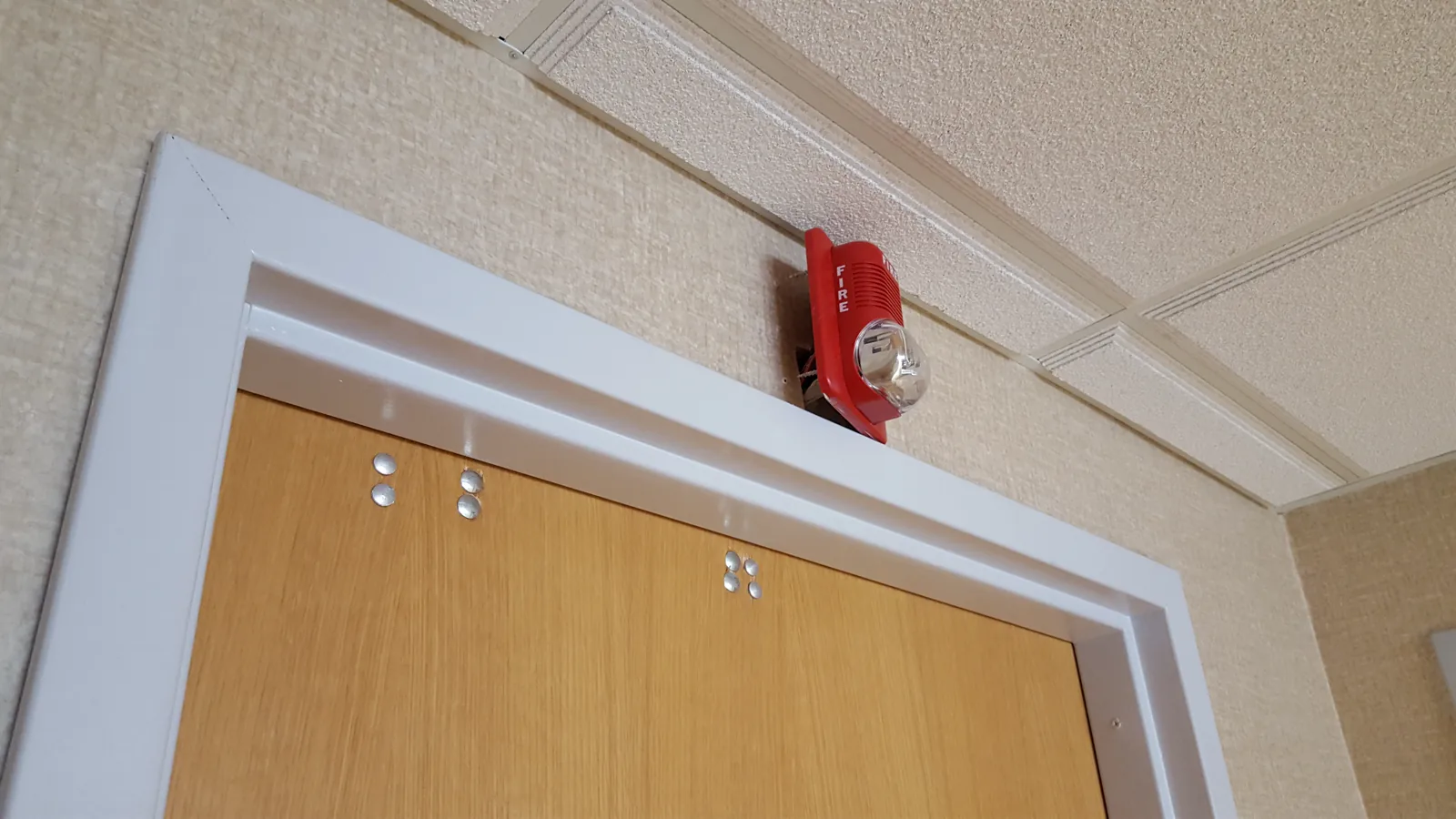

Wires routed through an improvised opening — Improvised routing.

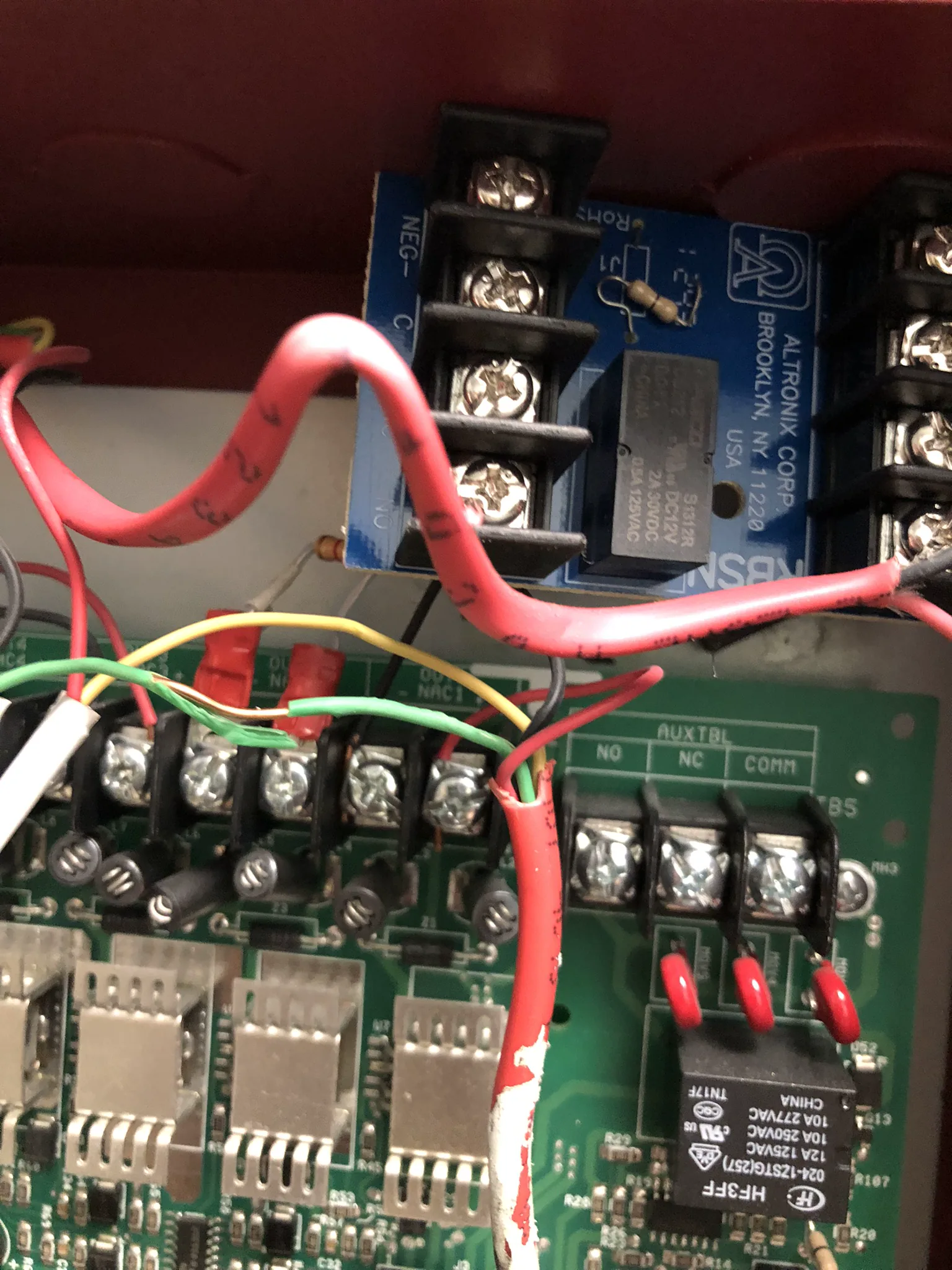

A questionable fire alarm panel interior — What does the field wiring look like?

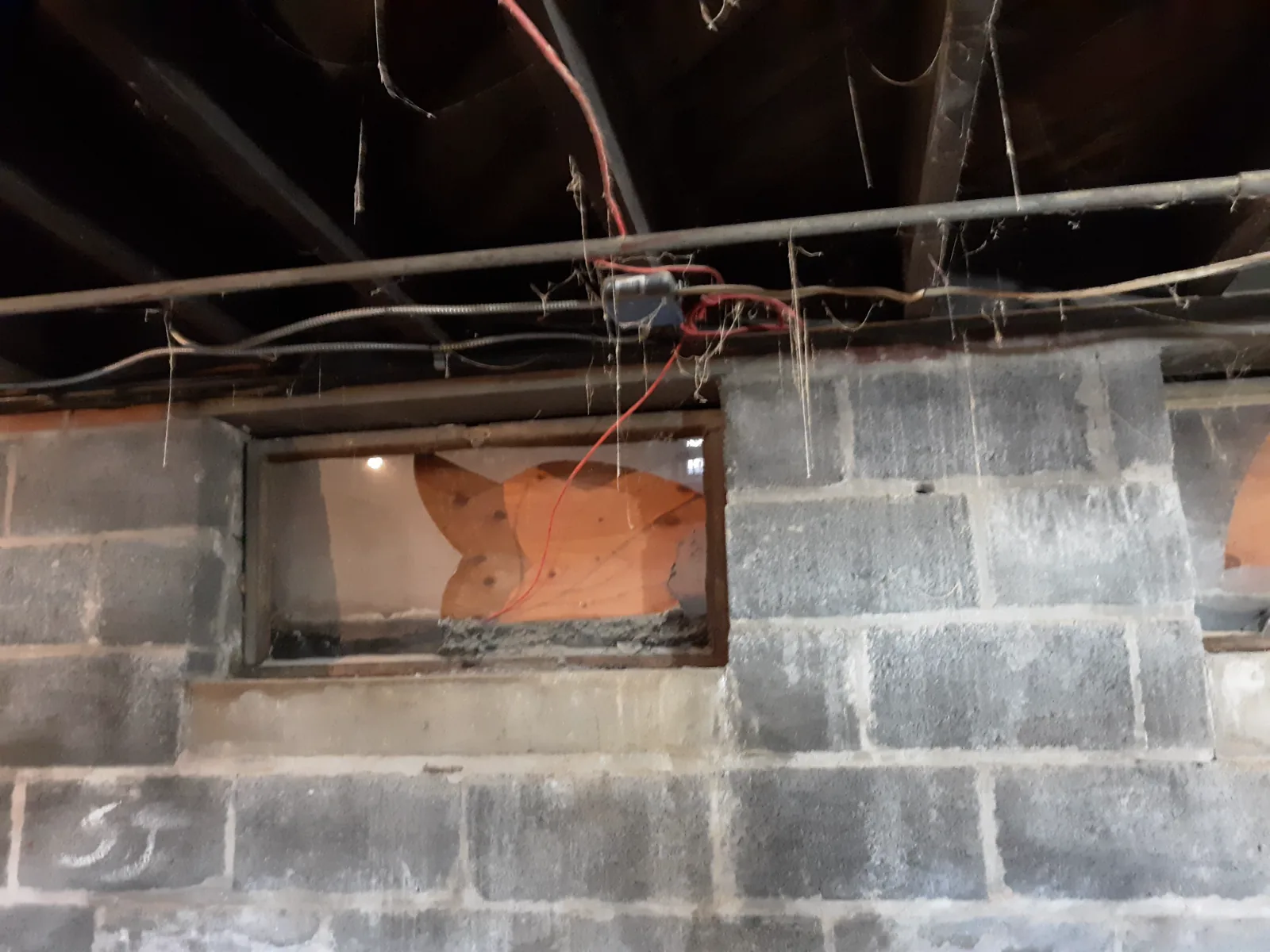

Fire-alarm wire run through damaged material — I swear it was broken before I ran fire wire through it.

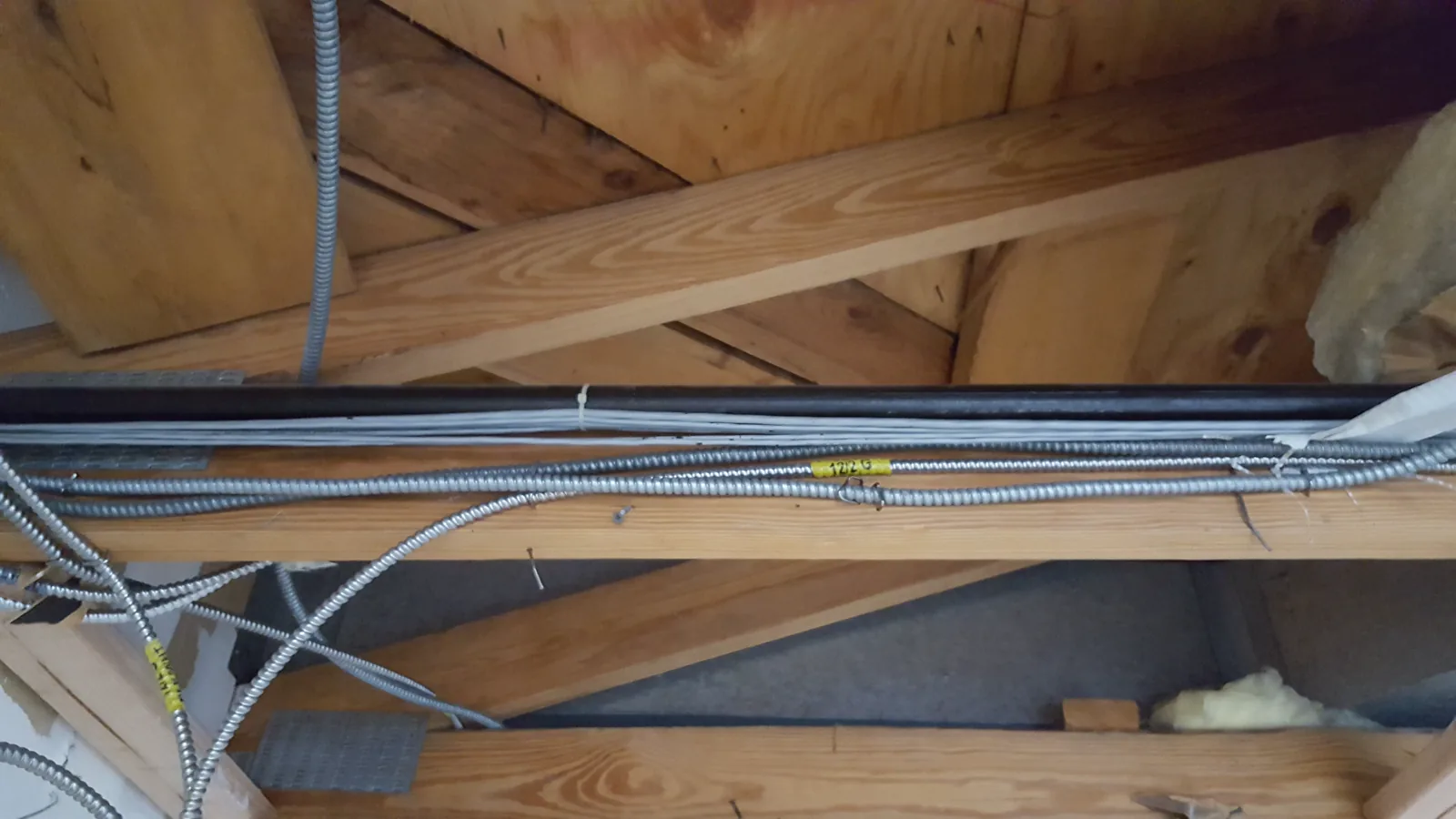

Low-voltage wiring routed alongside gas pipes — Minimum separation plus gas pipes!

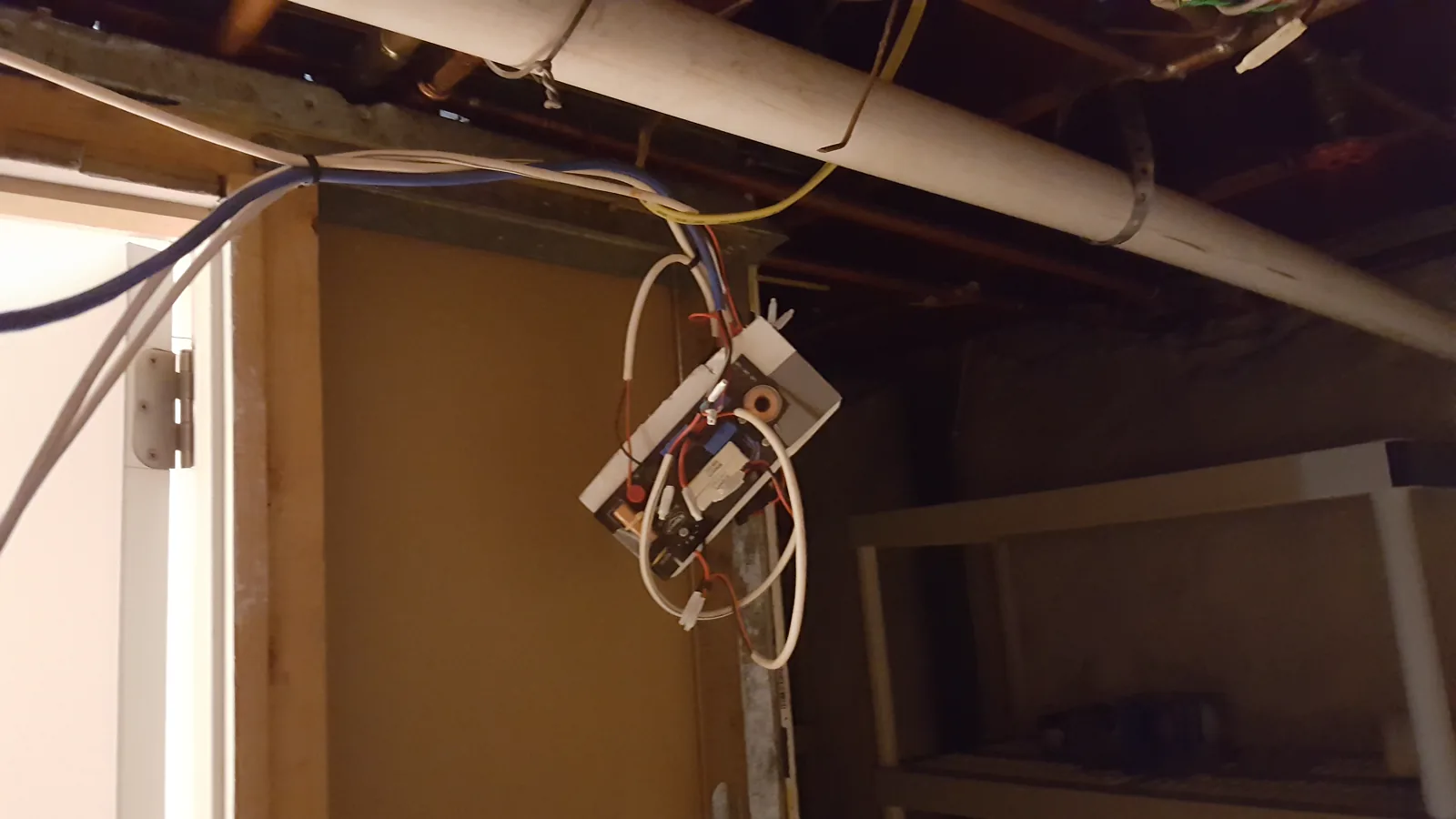

An in-wall speaker crossover mounted remotely after hitting a pipe — In-wall speaker hit a pipe, so they “remoted” the right crossover.

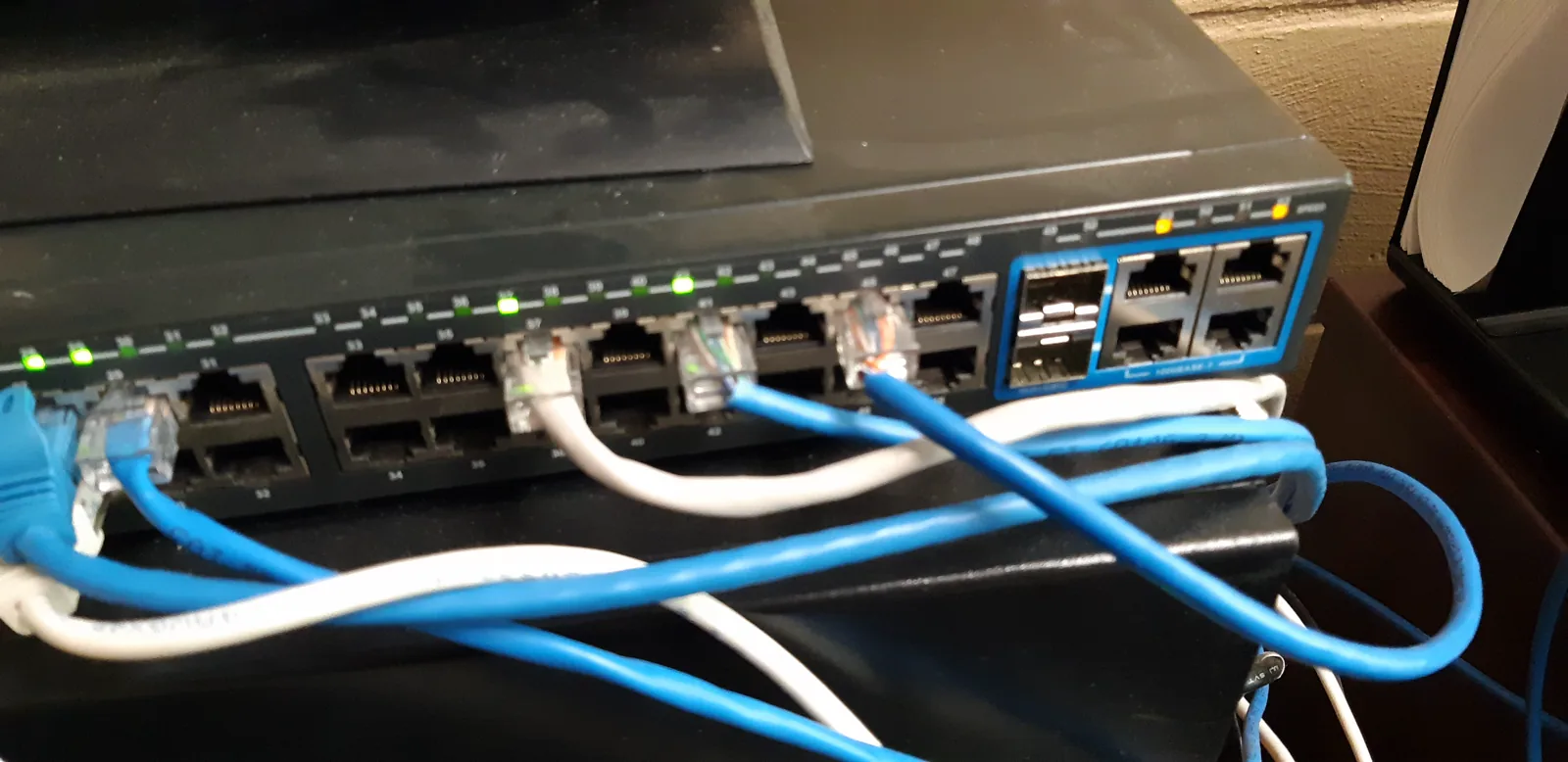

Two of four network terminations completed — Two of four—could be worse.

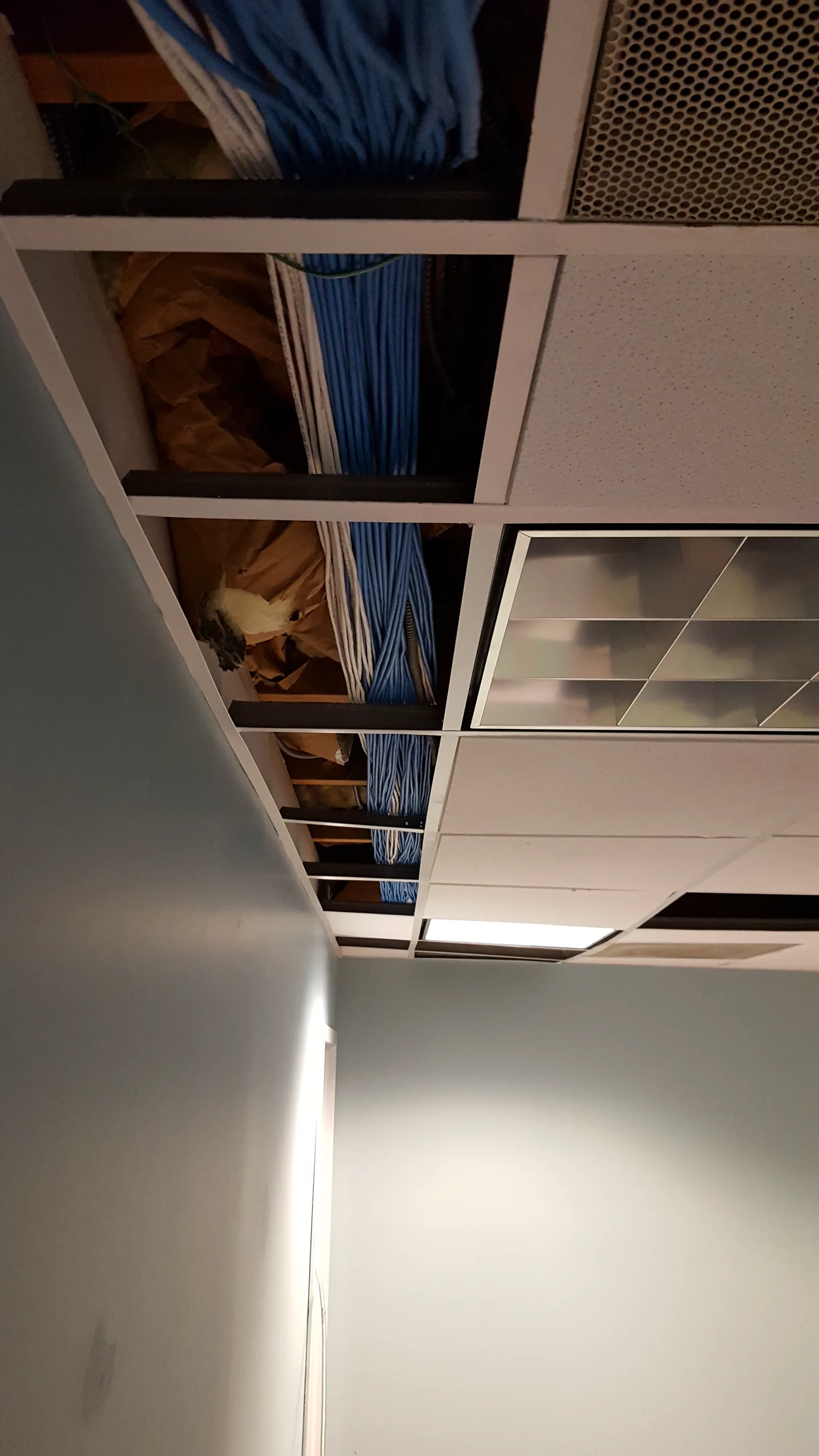

Too many wires resting on a suspended ceiling — How many wires will collapse it?
